Texas Instruments provides a recommended PCB layout in the MSP430 Microcontroller Family User's Guide (SLAU144) and the MSPM0L1xxxSRHBR Device Errata (SLAZ534). It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency signals.
The MSPM0L1306SRHBR has an internal POR and BOR circuitry. To handle these, ensure that the power supply ramps up slowly (typically < 10 ms) and that the voltage stays within the recommended operating range. You can also use external circuitry, such as a voltage supervisor, to detect power failures and reset the device.
For the MSPM0L1306SRHBR, it's essential to follow the clock configuration guidelines in the datasheet and user's guide. Ensure that the crystal oscillator is properly designed, with correct load capacitance and ESR values, to achieve stable clock operation. You can also use the TI Clock Designer tool to help with clock configuration.
The MSPM0L1306SRHBR has various power modes, including LPM3 and LPM4. To implement a reliable and efficient power management strategy, use the device's power modes to minimize power consumption during idle periods. You can also use the device's built-in peripherals, such as the Timer_A, to wake up the device from low-power modes.
The MSPM0L1306SRHBR has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, ensure that the device is operated within the recommended temperature range and that the PCB design allows for adequate heat dissipation. You can use thermal simulation tools, such as TI's THERMALCalc, to estimate the device's temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSPM0L1306SRHBR Overview

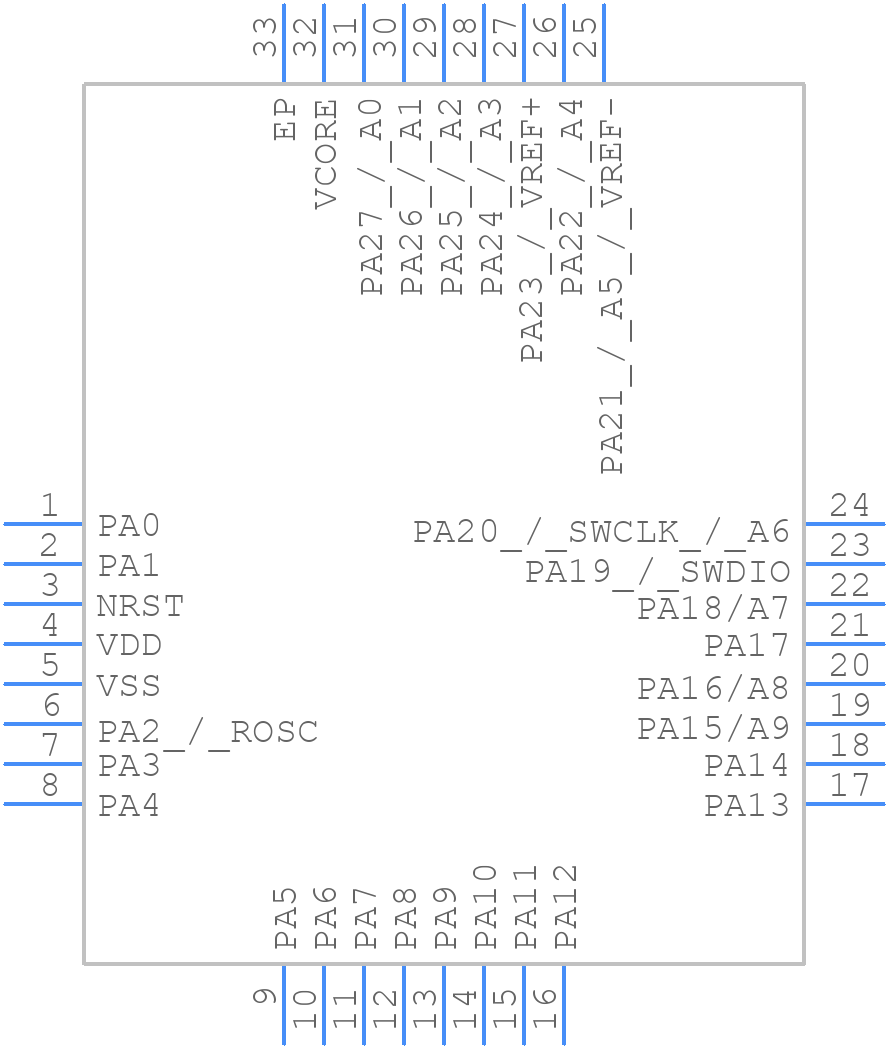

Use the download button to access the MSPM0L1306SRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSPM0,
or try a keyword search, such as Microcontrollers
