MT41K512M16VRN-107AAT:P - Micron

MT41K512M16VRN-107AAT:P Details

• Manufacturer Part Number:

  MT41K512M16VRN-107AAT:P

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

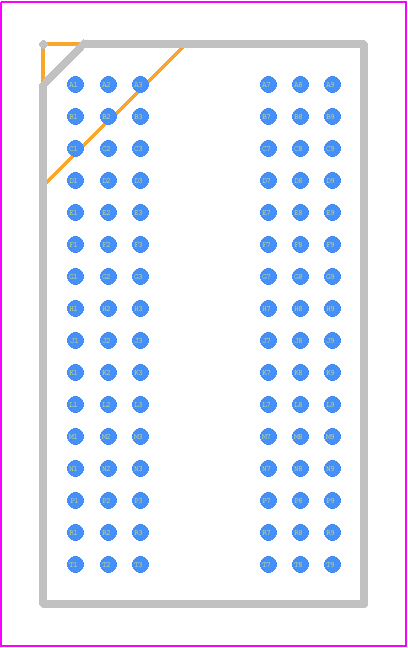

• Package Description:

  TFBGA-96

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.36

• Date Of Intro:

  2019-01-21

• Manufacturer:

  Micron Technology Inc

• YTEOL:

  4

• Access Mode:

  SINGLE BANK PAGE BURST

• Additional Feature:

  AUTO/SELF REFRESH

• Clock Frequency-Max (fCLK):

  934.57 MHz

• I/O Type:

  COMMON

• JESD-30 Code:

  R-PBGA-B96

• JESD-609 Code:

  e1

• Length:

  14 mm

• Memory Density:

  8589934592 bit

• Memory IC Type:

  DDR3L DRAM

• Memory Width:

  16

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  96

• Number of Words:

  536870912 words

• Number of Words Code:

  512000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  512MX16

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFBGA

• Package Equivalence Code:

  BGA96,9X16,32

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Refresh Cycles:

  8192

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.2 mm

• Self Refresh:

  YES

• Standby Current-Max:

  0.022 A

• Supply Current-Max:

  0.304 mA

• Supply Voltage-Max (Vsup):

  1.45 V

• Supply Voltage-Min (Vsup):

  1.283 V

• Supply Voltage-Nom (Vsup):

  1.35 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  8 mm
