MT62F512M32D2DS-031AUT:B - Micron

MT62F512M32D2DS-031AUT:B Details

• Manufacturer Part Number:

  MT62F512M32D2DS-031AUT:B

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

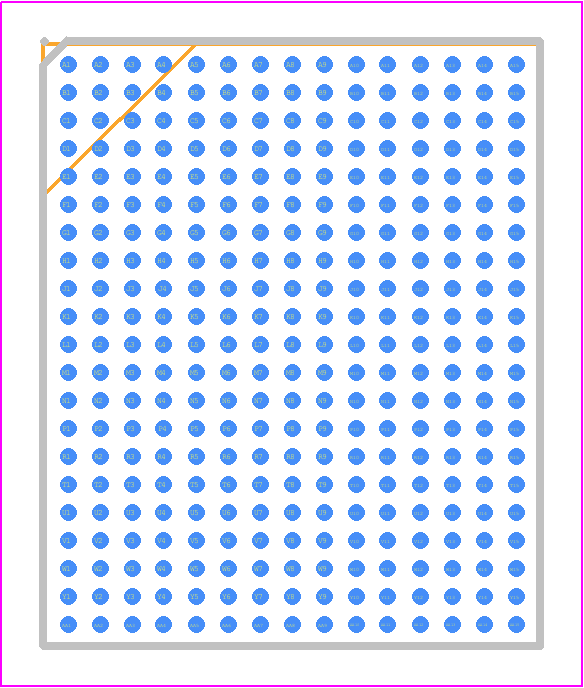

  TFBGA-315

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.36

• Manufacturer:

  Micron Technology Inc

• YTEOL:

  0

• Access Mode:

  MULTI BANK PAGE BURST

• Additional Feature:

  IT ALSO REQUIRES 1.8V NOMINAL SUPPLY

• Clock Frequency-Max (fCLK):

  3194 MHz

• I/O Type:

  COMMON

• Interleaved Burst Length:

  16,32

• JESD-30 Code:

  R-PBGA-B315

• Length:

  15 mm

• Memory Density:

  17179869184 bit

• Memory IC Type:

  LPDDR5 DRAM

• Memory Width:

  32

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  315

• Number of Words:

  536870912 words

• Number of Words Code:

  512000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  512MX32

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFBGA

• Package Equivalence Code:

  BGA315,15X21,32/28

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, THIN PROFILE, FINE PITCH

• Refresh Cycles:

  8192

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.1 mm

• Self Refresh:

  YES

• Sequential Burst Length:

  16,32

• Standby Current-Max:

  0.0056 A

• Supply Current-Max:

  0.384 mA

• Supply Voltage-Max (Vsup):

  1.12 V

• Supply Voltage-Min (Vsup):

  1.01 V

• Supply Voltage-Nom (Vsup):

  1.05 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  12.4 mm
