MUN5135DW1T1G - onsemi

Description: Simplifies Circuit Design; Reduces Board Space; Reduces Component Count; NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable; These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant

Download MUN5135DW1T1G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

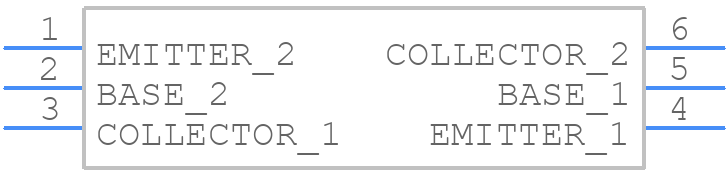

MUN5135DW1T1G - onsemi - PCB symbol
click to zoom
PCB Footprints
MUN5135DW1T1G - onsemi PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - MUN5135DW1T1G-
click to zoom
3D Models
MUN5135DW1T1G - onsemi - 3D model - SOT23 (6-Pin) - MUN5135DW1T1G-
click to zoom

MUN5135DW1T1G Details

  • Manufacturer Part Number:

    MUN5135DW1T1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-88/SC70-6/SOT-363 6 LEAD

  • Pin Count:

    6

  • Manufacturer Package Code:

    419B-02

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    BUILT-IN BIAS RESISTOR RATIO IS 0.047

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    80

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Power Dissipation-Max (Abs):

    0.15 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

MUN5135DW1T1G Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2 oz copper thickness and a thermal relief pattern are recommended for optimal thermal performance.
  • Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink or thermal interface material to maintain a safe junction temperature. Monitor the device's thermal resistance (RθJA) and ensure it is within the specified range.
  • The MUN5135DW1T1G has built-in ESD protection, but it is still recommended to follow standard ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
  • Yes, the MUN5135DW1T1G is qualified for automotive and high-reliability applications. However, additional testing and validation may be required to meet specific industry standards (e.g., AEC-Q100). Consult with onsemi's application engineers for guidance.
  • Verify that the device is properly biased and that the input signals are within the recommended voltage range. Check for proper PCB layout and decoupling. Use an oscilloscope to monitor the device's output and input signals to identify any anomalies.
