MWCT1012VLF - NXP

Description: Wireless Charging ICs 32bit,64k Flash,2kB FlexMemory

Download MWCT1012VLF Model
Schematic
symbols

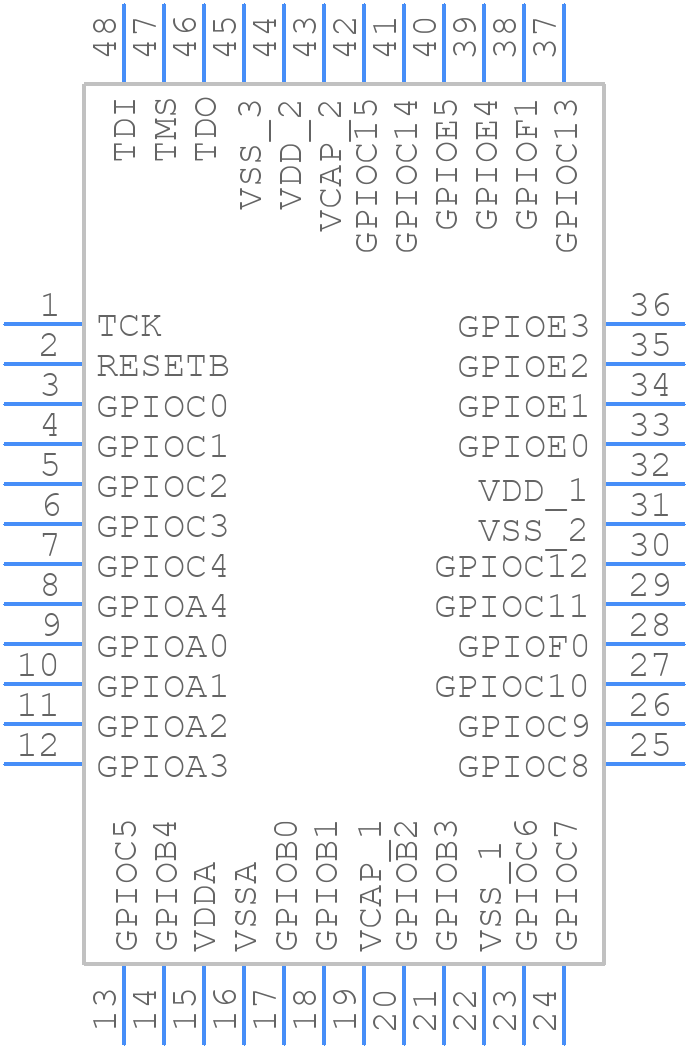

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MWCT1012VLF - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP 48 LEAD 0.50 PITCH (7.0X7.0X1.4)
click to zoom
3D Models
MWCT1012VLF - NXP  - 3D model - Quad Flat Packages - LQFP 48 LEAD 0.50 PITCH (7.0X7.0X1.4)
click to zoom

MWCT1012VLF Details

  • Manufacturer Part Number:

    MWCT1012VLF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Date Of Intro:

    2018-08-09

  • Manufacturer:

    NXP Semiconductors

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40
