MX7705EPE+ - Analog Devices

Description: Analog to Digital Converters - ADC 16-Bit, Low-Power, 2-Channel, Sigma-Delt

Download MX7705EPE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

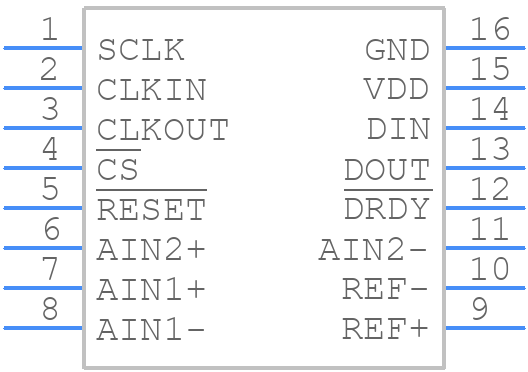

MX7705EPE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MX7705EPE+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P16+1
click to zoom
3D Models
MX7705EPE+ - Analog Devices - 3D model - Dual-In-Line Packages - P16+1
click to zoom

MX7705EPE+ Details

  • Manufacturer Part Number:

    MX7705EPE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-PDIP-300_MIL

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2003-11-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.75 V

  • Analog Input Voltage-Min:

    -1 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.175 mm

  • Linearity Error-Max (EL):

    0.003%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0384 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MX7705EPE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MX7705EPE+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output pins properly and to use a sufficient amount of bypass capacitors.
  • The maximum input voltage that the MX7705EPE+ can handle is 18V. However, it's recommended to operate the device within the recommended input voltage range of 7V to 15V for optimal performance and reliability.
  • The MX7705EPE+ is rated for operation up to 125°C. However, it's recommended to derate the device's performance and reliability at high temperatures. It's also important to ensure that the device is properly heatsinked and that the PCB is designed to handle high temperatures.
  • To troubleshoot issues with the MX7705EPE+, start by checking the input and output voltages, as well as the device's operating temperature. Use an oscilloscope to check for oscillations or noise on the output. Also, verify that the input and output capacitors are of high quality and are properly connected. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MX7705EPE+ Overview

Use the download button to access the MX7705EPE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MX770, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
