NA2100AFAE2D - Nisshinbo

Description: • Synchronous Operation • Full-Scale Frequency Set by External System Clock • 3 V / 5 V Operation • Low Consumption 3 mW (typ) • Nominal Input Range 0 to VREF • VREF Range 2.5 V to VDD • Internal Reference Voltage 2.5 V • Maximum Input Frequency 1 MHz • Operating Temperature Range: -40C to +125C • Package VSP-8-AF(MSOP8*)

Download NA2100AFAE2D Model

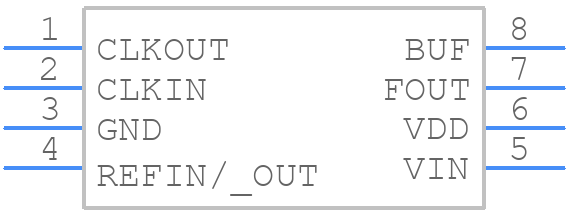

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NA2100AFAE2D - Nisshinbo PCB footprint - Small Outline Packages - Small Outline Packages - MO-187-DA (VSP8)
click to zoom
3D Models
NA2100AFAE2D - Nisshinbo  - 3D model - Small Outline Packages - MO-187-DA (VSP8)
click to zoom

NA2100AFAE2D Details

  • Manufacturer Part Number:

    NA2100AFAE2D

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    9

  • Converter Type:

    A/D CONVERTER

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NA2100AFAE2D Overview

Use the download button to access the NA2100AFAE2D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NA210, or try a keyword search, such as Analog to Digital Converters
