Description:Accepts M−LVDS, LVDS, LVPECL and HCSL Differential Input Signal Levels; Maximum Data Rate of 400 Mbps; Maximum Clock Frequency of 200 MHz; 25 ps Typical Channel−to−Channel Skew; 3.3 ns Maximum Propagation Delay; 3.3 V ±10% Power Supply; High Impedance Outputs When Disabled; −40°C to +85°C Ambient Operating Temperature; Supports Open, Short, and Terminated Input Fail−safe; 16−Pin TSSOP, 5.0 mm x 4.4 mm x 1.2 mm, Pb−Free
A good PCB layout for NB3N4666CDTR2G involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating conditions, use a heat sink if necessary, and ensure good thermal conductivity between the device and the PCB. Additionally, consider using a thermally conductive adhesive or thermal interface material to improve heat transfer.
The NB3N4666CDTR2G has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
Yes, the NB3N4666CDTR2G can be used in switching regulator applications, but it's essential to ensure that the device is operated within its recommended switching frequency range and that the output is properly filtered to minimize ringing and overshoot.
To troubleshoot issues with NB3N4666CDTR2G, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions. Use an oscilloscope to analyze the output voltage and identify any signs of oscillation or instability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB3N4666CDTR2G Overview

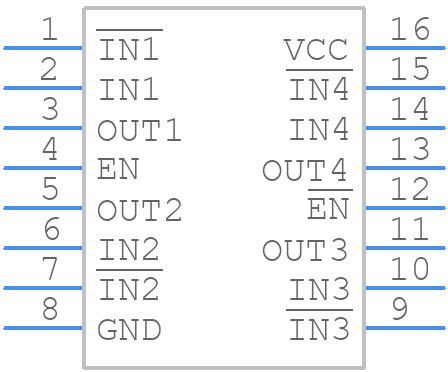

Use the download button to access the NB3N4666CDTR2G schematic symbol and PCB footprint.
