NB3V8312CMNG - onsemi

Description: NB3V8312CMNG, Clock Buffer, Maximum of 250 MHz, 32-Pin QFN

Download NB3V8312CMNG Model

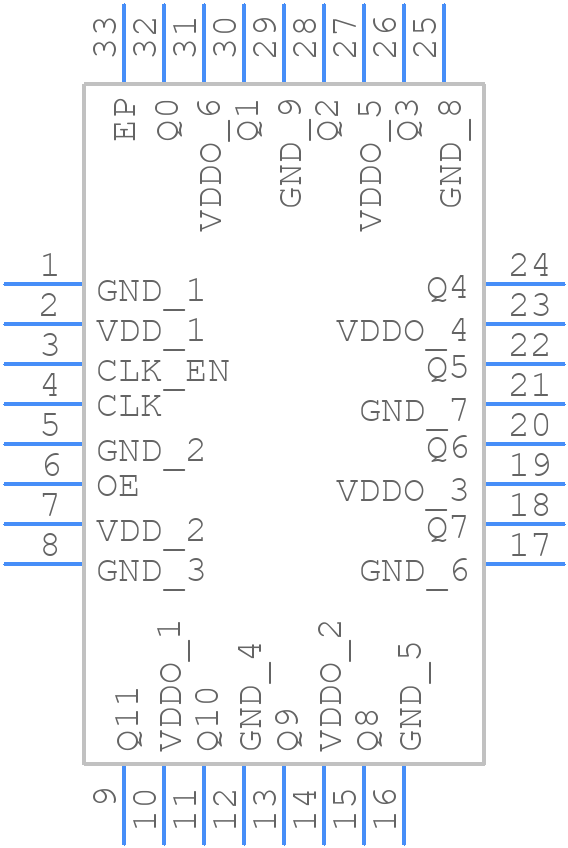

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB3V8312CMNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32 5x5, 0.5P-2
click to zoom
3D Models
NB3V8312CMNG - onsemi  - 3D model - Quad Flat No-Lead - QFN32 5x5, 0.5P-2
click to zoom

NB3V8312CMNG Details

  • Manufacturer Part Number:

    NB3V8312CMNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN32, 5x5, 0.5P, 3.1x3.1EP

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    488AM

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES AT 2.5V, 3.3V SUPPLY VOLTAGE

  • Family:

    NB3V

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE WITH SERIES RESISTOR

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    4.2 ns

  • Same Edge Skew-Max (tskwd):

    0.15 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • fmax-Min:

    250 MHz

NB3V8312CMNG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB3V8312CMNG involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-up and configuration of the NB3V8312CMNG, follow the recommended power-up sequence, which involves applying the power supply voltage (VCC) before the input voltage (VIN). Also, make sure to configure the device according to the datasheet recommendations, including setting the correct output voltage and enabling/disabling the device as needed.
  • The NB3V8312CMNG has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to keep the device within the recommended operating temperature range. Additionally, ensure good airflow and avoid blocking the airflow around the device.
  • To troubleshoot issues with the NB3V8312CMNG, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and ensure that it meets the recommended layout guidelines. Also, verify that the device is properly configured and that the input and output capacitors are of the correct value and type. If issues persist, consult the datasheet and application notes for further guidance.
  • Yes, the NB3V8312CMNG is a high-frequency device, and EMI/EMC considerations are crucial. Ensure that the PCB layout is designed to minimize radiation and susceptibility to electromagnetic interference. Use shielding, filtering, and grounding techniques as needed to reduce EMI. Additionally, follow the recommended layout guidelines and use EMI-compliant components to minimize emissions.
