A good PCB layout is crucial for high-speed signals. Ensure a solid ground plane, use 50-ohm transmission lines, and keep the signal traces short and away from noise sources. Also, use a common mode choke or a ferrite bead to filter out high-frequency noise.
The termination resistors (Rt) depend on the signal frequency and the characteristic impedance of the transmission line. For most applications, a 100-ohm differential termination (50 ohms each leg) is suitable. However, you may need to adjust the value based on your specific signal frequency and transmission line impedance.
The maximum cable length depends on the signal frequency, cable type, and signal attenuation. As a general guideline, for a 100-MHz signal, you can use up to 10 meters of cable. For higher frequencies, the cable length should be shorter. Always check the signal integrity and adjust the cable length accordingly.
Signal skew and jitter can be minimized by using a well-designed PCB layout, ensuring signal traces are matched and of equal length, and using a common clock source. You can also use signal conditioning techniques like clock data recovery (CDR) or equalization to mitigate skew and jitter.
Use a 0.1-uF ceramic capacitor and a 10-uF electrolytic capacitor in parallel, placed close to the device's power pins. This will help filter out high-frequency noise and ensure a stable power supply.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB7NPQ1002MMTTWG Overview

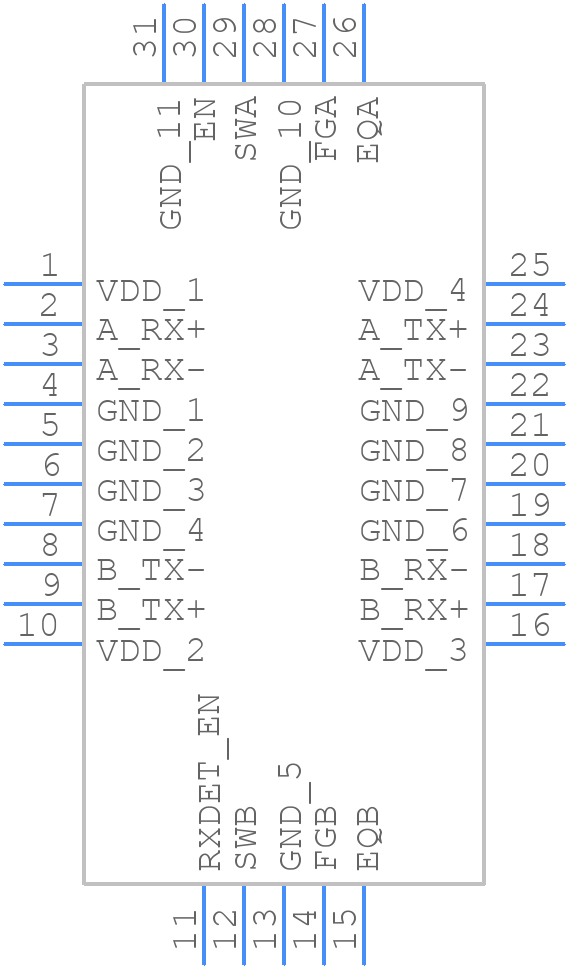

Use the download button to access the NB7NPQ1002MMTTWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB7NP,
or try a keyword search, such as Line Driver or Receivers
