A good PCB layout for the NB7NPQ702MMUTXG should consider signal integrity, power integrity, and thermal management. Keep the signal traces short and away from noise sources, use a solid ground plane, and ensure proper decoupling. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The NB7NPQ702MMUTXG has a thermal pad that must be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Keep the device away from other heat sources and ensure good airflow around the device.
The recommended input capacitance for the NB7NPQ702MMUTXG is 0.1 μF to 1 μF, depending on the specific application and noise requirements. A larger input capacitance can help filter out noise, but may also increase the startup time.
The NB7NPQ702MMUTXG requires a bias voltage of 2.5 V to 5.5 V. Ensure the bias voltage is stable and within the recommended range. Use a voltage regulator or a voltage reference to generate the bias voltage, and decouple the bias pin with a 0.1 μF capacitor.
The NB7NPQ702MMUTXG can operate up to 1.5 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. Ensure the PCB layout is optimized for high-frequency operation, and use a good quality PCB material.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB7NPQ702MMUTXG Overview

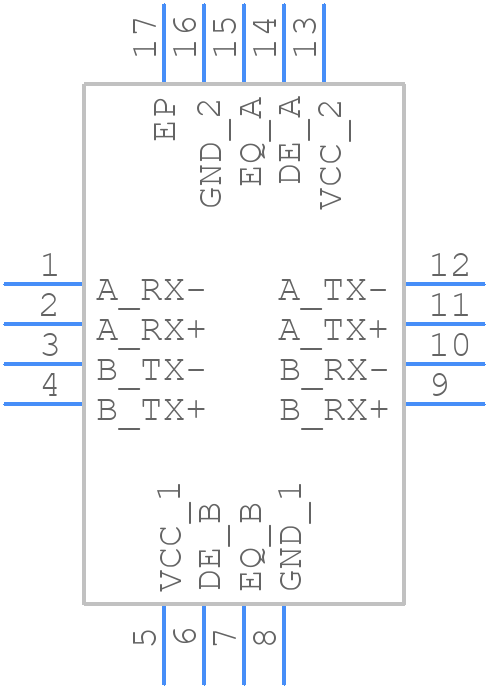

Use the download button to access the NB7NPQ702MMUTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB7NP,
or try a keyword search, such as Other Consumer ICs
