A good PCB layout for the NB7V58MMNHTBG should prioritize signal integrity, minimize noise, and ensure proper power supply decoupling. Use a solid ground plane, keep signal traces short and away from power traces, and add decoupling capacitors close to the device. Consult onsemi's application notes and PCB layout guidelines for more information.
To ensure the NB7V58MMNHTBG operates within its recommended operating conditions, monitor the device's junction temperature (TJ), supply voltage (VCC), and input/output voltage levels. Use thermal management techniques, such as heat sinks or thermal interfaces, to keep TJ within the specified range. Also, ensure the power supply voltage is within the recommended range and that input/output voltage levels are within the specified limits.
Exceeding the maximum ratings of the NB7V58MMNHTBG can lead to device damage, reduced reliability, or even complete failure. Operating the device beyond its maximum ratings can cause excessive heat generation, electrical overstress, or damage to internal components. Always ensure that the device operates within its recommended operating conditions to maintain its performance and longevity.
To troubleshoot issues with the NB7V58MMNHTBG, start by consulting the datasheet and application notes. Verify that the device is properly powered, and input/output signals are within the specified ranges. Use oscilloscopes or logic analyzers to monitor signal waveforms and identify potential issues. Check for PCB layout errors, soldering defects, or component failures. If the issue persists, contact onsemi's technical support or a qualified engineer for further assistance.
Yes, the NB7V58MMNHTBG is a sensitive device that requires proper ESD protection during handling and assembly. Use ESD-safe materials, such as wrist straps, mats, or bags, to prevent static electricity damage. Ground yourself before handling the device, and avoid touching the device's pins or internal components. Follow onsemi's ESD handling guidelines and industry-standard ESD protection practices to ensure the device's reliability and performance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
NB7V58MMNHTBG Overview

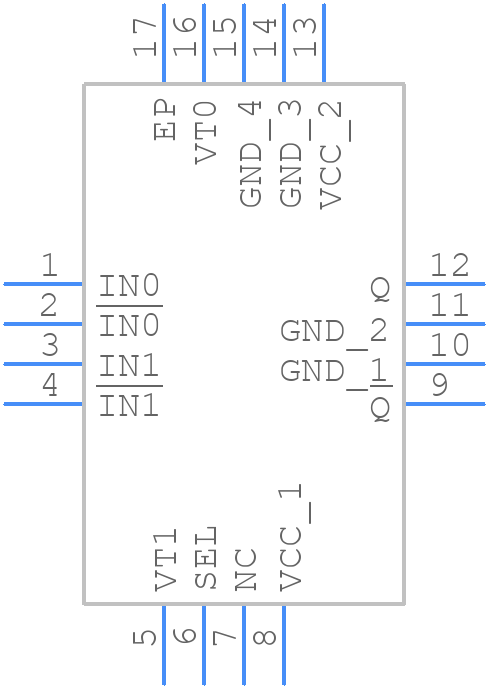

Use the download button to access the NB7V58MMNHTBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB7V5,
or try a keyword search, such as Multiplexer/Demultiplexers
