NB7VQ58MMNHTBG - onsemi

Description: NB7VQ58MMNHTBG, Clock Translator CML CML, 1-Input, 16-Pin QFN

Download NB7VQ58MMNHTBG Model

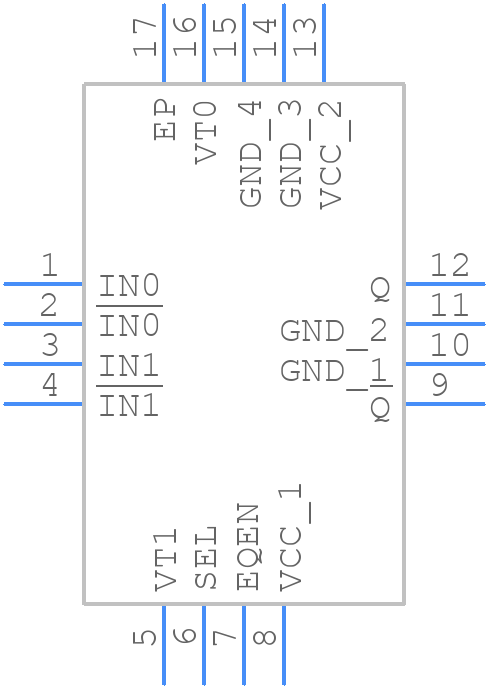

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB7VQ58MMNHTBG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 PIN QFN case 485G-01-ISSUE D
click to zoom
3D Models
NB7VQ58MMNHTBG - onsemi  - 3D model - Quad Flat No-Lead - 16 PIN QFN case 485G-01-ISSUE D
click to zoom

NB7VQ58MMNHTBG Details

  • Manufacturer Part Number:

    NB7VQ58MMNHTBG

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, LEAD FREE, QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    485G-01

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Family:

    7V

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Logic IC Type:

    MULTIPLEXER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Inputs:

    2

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    150 mA

  • Prop. Delay@Nom-Sup:

    0.24 ns

  • Propagation Delay (tpd):

    22 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NB7VQ58MMNHTBG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB7VQ58MMNHTBG involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 3.3V or 5V power supply, and the VEE pin to a stable -5V or -3.3V power supply. The input common-mode voltage should be within the recommended range of 1.5V to VCC - 1.5V. Additionally, ensure that the input signals are properly terminated and that the output is loaded with a suitable impedance.
  • The NB7VQ58MMNHTBG is specified to operate up to 2.5 GHz, but the actual operating frequency may be limited by the specific application, PCB layout, and signal integrity. It's recommended to consult the datasheet and application notes for more information on frequency planning and signal integrity.
  • The NB7VQ58MMNHTBG has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the device away from heat sources. The thermal resistance of the package is 25°C/W, and the recommended operating temperature range is -40°C to 85°C.
  • The NB7VQ58MMNHTBG has built-in ESD protection diodes on the input and output pins, which can withstand up to 2 kV of ESD voltage. To prevent latch-up, ensure that the input signals are properly terminated, and the device is operated within the recommended voltage and current ranges. Additionally, follow proper handling and storage procedures to prevent ESD damage.
