A good PCB layout for the NB7VPQ701MMUTBG should consider signal integrity, power integrity, and thermal management. Keep the signal traces short and away from noise sources, use a solid ground plane, and ensure proper decoupling. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The NB7VPQ701MMUTBG has a thermal pad that must be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Keep the device away from heat sources and ensure good airflow around the device.
The recommended input capacitance for the NB7VPQ701MMUTBG is 0.1 μF to 1 μF, depending on the specific application and noise requirements. A larger input capacitance can help filter out noise, but may also increase the startup time.
The NB7VPQ701MMUTBG is rated for operation up to 125°C, but the device's performance and reliability may degrade at higher temperatures. Ensure proper thermal management and consider derating the device's performance at higher temperatures.
To ensure EMC, follow proper PCB layout and design guidelines, use shielding and filtering where necessary, and ensure that the device is properly decoupled. Also, consider using a common-mode choke or ferrite bead to filter out electromagnetic interference (EMI).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB7VPQ701MMUTBG Overview

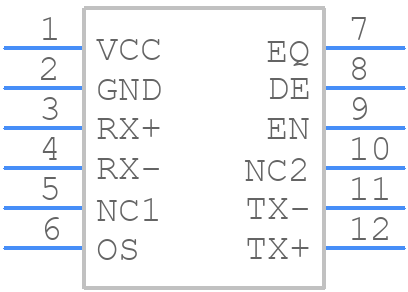

Use the download button to access the NB7VPQ701MMUTBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB7VP,
or try a keyword search, such as Line Driver or Receivers
