NB7VQ1006MMNG - onsemi

Description: Maximum Input Data Rate > 10 Gbps; Maximum Input Clock Frequency > 7.5 GHz; Backplane and Cable Interconnect Compensation; Differential CML Outputs, 400 mV Peak-to-Peak, Typical; Operating Range: VCC = 1.71 V to 2.625 V, GND = 0 V; -40°C to +85°C Ambient Operating Temperature

Download NB7VQ1006MMNG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

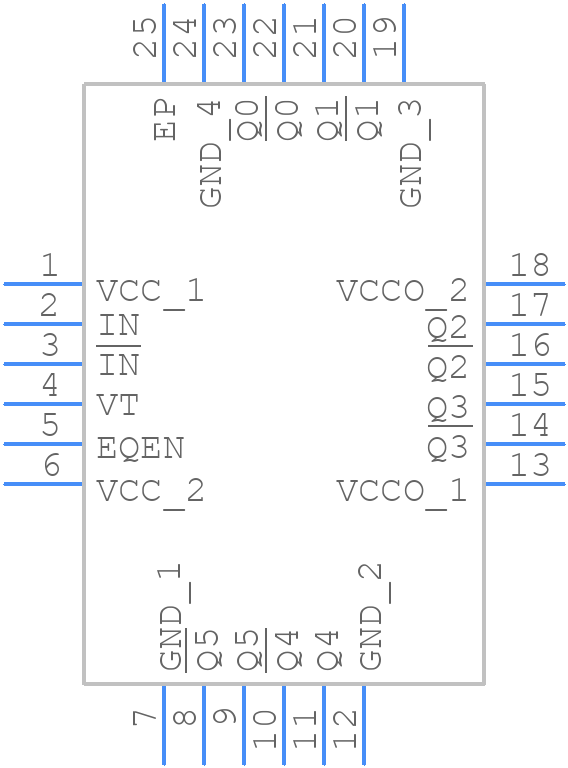

NB7VQ1006MMNG - onsemi - PCB symbol
click to zoom
PCB Footprints
NB7VQ1006MMNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN24, 4x4, 0.5P CASE 485L ISSUE B
click to zoom
3D Models
NB7VQ1006MMNG - onsemi - 3D model - Quad Flat No-Lead - QFN24, 4x4, 0.5P CASE 485L ISSUE B
click to zoom

NB7VQ1006MMNG Details

  • Manufacturer Part Number:

    NB7VQ1006MMNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN24, 4x4, 0.5P

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    485L-01

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    onsemi

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

NB7VQ1006MMNG Frequently Asked Questions (FAQs)

  • A good PCB layout for NB7VQ1006MMNG involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 3.3V power supply, and the VEE pin to a stable -3.3V power supply. The input common-mode voltage should be within the range of 1.5V to 2.5V. Additionally, ensure that the output is properly terminated with a 50Ω load.
  • The NB7VQ1006MMNG can operate over a temperature range of -40°C to 125°C. However, it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
  • The NB7VQ1006MMNG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-free environment.
  • The recommended input signal amplitude for NB7VQ1006MMNG is between 100mVpp and 1Vpp. Signals with amplitudes outside this range may not be properly amplified or may cause the device to saturate.
