NCH-RSL10-101Q48-ABG - onsemi

Description: Ultra-Low-Power: - Industry's lowest power consumption in Deep Sleep Mode (62.5 nW) and Rx in Receive Mode (7 mW) - Industry's best EEMBC® ULPMark™ scores (1090 ULPMark CP @ 3 V; 1260 @ 2.1 V); Advanced Multi-Protocol Wireless Functionality: - Rx Sensitivity: - 94 dBM - Transmitting Power: -17 to +6 dBm - Supports Bluetooth Low Energy and 2.4 GHz proprietary/custom protocols - Supports Firmware Over The Air (FOTA); Flexible Voltage Supply Range (1.1 and 3.3 V): Supports devices using 1.2 and 1.5 V batteries

Download NCH-RSL10-101Q48-ABG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

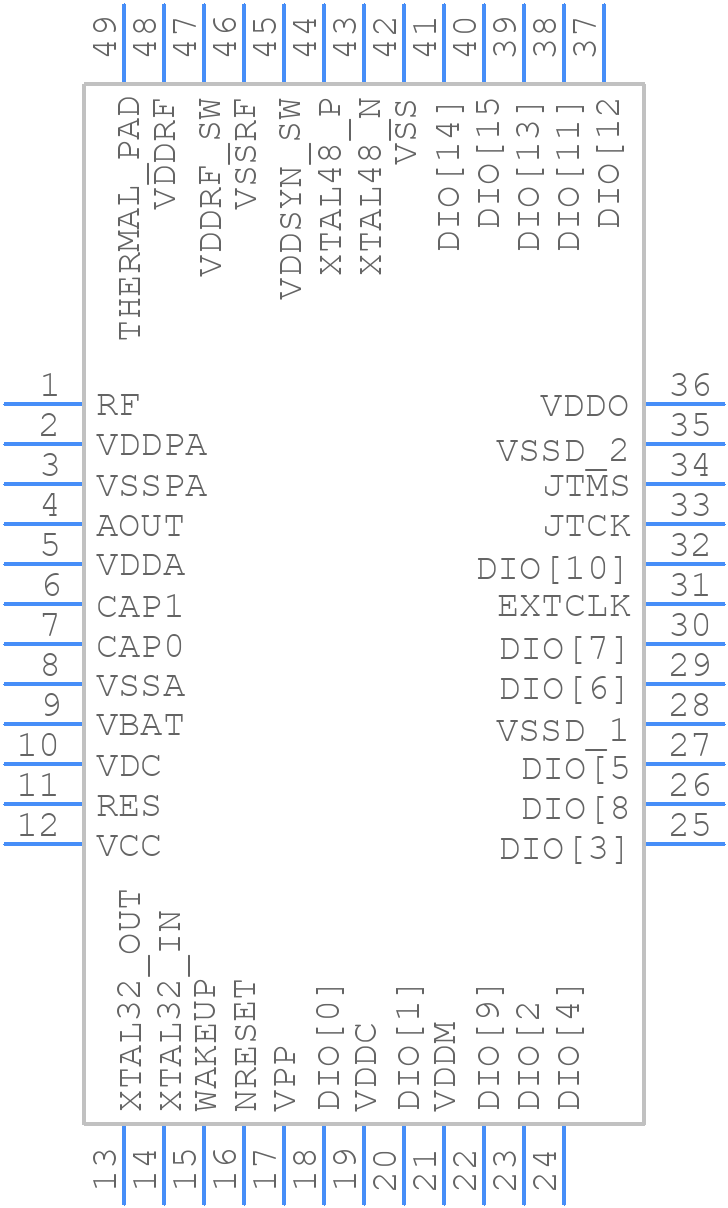

NCH-RSL10-101Q48-ABG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCH-RSL10-101Q48-ABG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN48 6x6, 0.4P CASE 485BA ISSUE A
click to zoom
3D Models
NCH-RSL10-101Q48-ABG - onsemi - 3D model - Quad Flat No-Lead - QFN48 6x6, 0.4P CASE 485BA ISSUE A
click to zoom

NCH-RSL10-101Q48-ABG Details

  • Manufacturer Part Number:

    NCH-RSL10-101Q48-ABG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-48

  • Manufacturer Package Code:

    485BA

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-02-22

  • Manufacturer:

    onsemi

  • Data Rate:

    2000 Mbps

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.25 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

NCH-RSL10-101Q48-ABG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use a 50-ohm impedance-controlled line to minimize signal reflections.
  • Ensure good thermal conductivity by using a thermal pad or a heat sink, and avoid blocking airflow around the device. Also, follow the recommended PCB layout and thermal design guidelines.
  • Power up the device in the following sequence: VDD, then VBAT, and finally enable the radio by setting the EN pin high. This ensures proper initialization and minimizes the risk of latch-up.
  • Use a 50-ohm antenna with a good impedance match to minimize signal reflections. Optimize the antenna design using simulation tools and consider factors like antenna size, shape, and orientation.
  • Use a 32.768 kHz crystal with a load capacitance of 12-15 pF and a series resistance of 1-2 kohm. Ensure the crystal is properly matched to the device's internal oscillator circuitry.
