A good PCB layout for the NCP1081DER2G should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value (at least 10uF) and ESR (less than 1 ohm). Also, ensure that the feedback network is properly compensated, and the output voltage is within the specified range.
The maximum ambient temperature for reliable operation of the NCP1081DER2G is 85°C. However, the device can operate up to 150°C junction temperature. Ensure proper thermal management to prevent overheating.
Yes, the NCP1081DER2G is suitable for high-reliability applications. It is built with a robust design, and onsemi provides a comprehensive set of reliability data, including FIT rates and MTBF calculations, to support high-reliability applications.
To protect the NCP1081DER2G from overvoltage and undervoltage conditions, use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended range. You can also add overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1081DER2G Overview

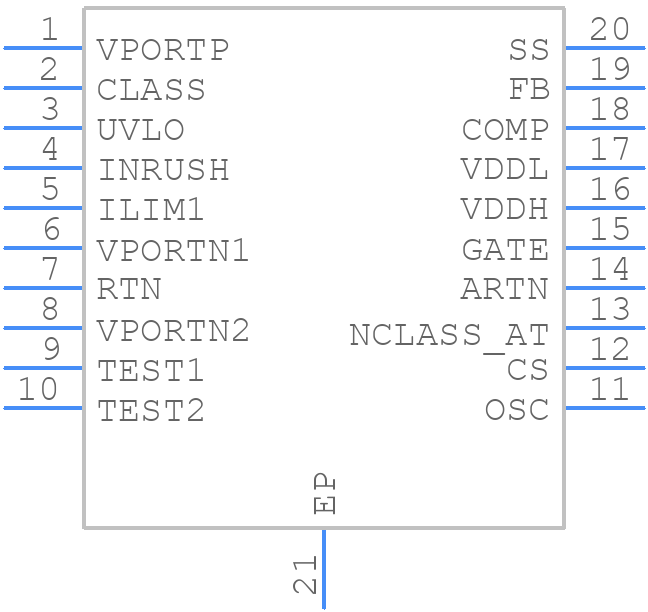

Use the download button to access the NCP1081DER2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP10,
or try a keyword search, such as Power Management Circuits
