NCP1090DRG - onsemi

Description: Fully supports IEEE 802.3af specifications - Allows for up to 15W of power - Certified interoperability between PoE devices; 500 mA operational current limit; Industrial temperature range -40°C to 85°C with full operation up to 125°C junction temperature; Vertical N-Channel DMOS pass switch offers the robustness of discrete MOSFETs

Download NCP1090DRG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

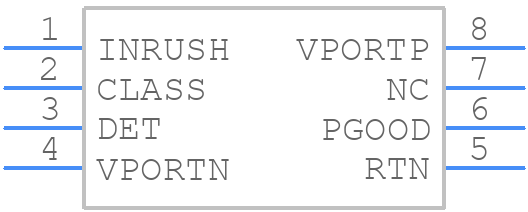

NCP1090DRG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP1090DRG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−8 CASE 751AZ ISSUE B
click to zoom
3D Models
NCP1090DRG - onsemi - 3D model - Small Outline Packages - SOIC−8 CASE 751AZ ISSUE B
click to zoom

NCP1090DRG Details

  • Manufacturer Part Number:

    NCP1090DRG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751AZ

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLERS

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9276 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7272 mm

  • Supply Current-Max (Isup):

    0.9 mA

  • Supply Voltage-Max (Vsup):

    57 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +31V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.937 mm

NCP1090DRG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1090DRG involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces to reduce EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the output capacitor is within the recommended range (22uF to 47uF), the input capacitor is at least 10uF, and the feedback resistors are within the recommended range (1kΩ to 10kΩ). Also, ensure the PCB layout is well-designed and the device is properly decoupled.
  • The NCP1090DRG can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
  • The NCP1090DRG is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to prevent overheating and ensure reliable operation.
  • The output voltage of the NCP1090DRG can be calculated using the formula: Vout = Vref x (1 + R2/R1), where Vref is the internal reference voltage (2.5V), R1 is the feedback resistor connected to the output, and R2 is the feedback resistor connected to the input.
