NCP1096PAR2G - onsemi

Description: IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af compliant - Allows for up to 90 W of power - Guaranteed interoperability between PoE devices; Part of ON Semiconductor’s family of high efficiency solutions for PoE-PD; Features an internal 71 mΩ pass transistor to support high-power applications; 5-Event Physical Layer Classification; Smart power budgeting using Autoclass support which allows the PSE to assign power to each PD efficiently; Active bridge and hot-swap FET disable when Auxililary supply connected, incr

Download NCP1096PAR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

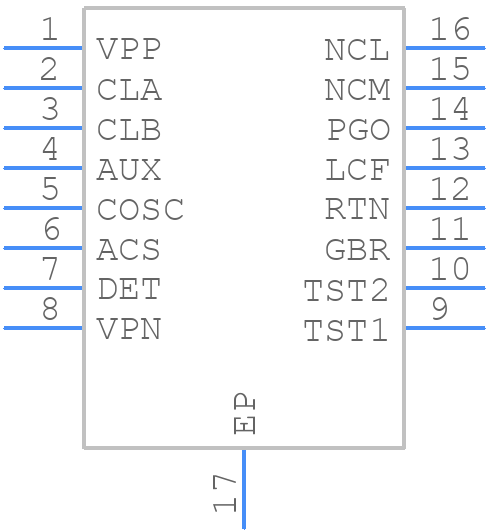

Symbol
NCP1096PAR2G - onsemi - PCB symbol
click to zoom

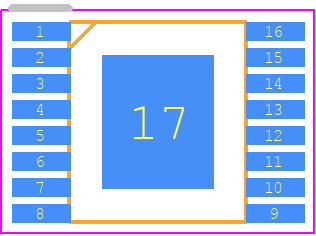

PCB Footprints
NCP1096PAR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP 16 4.4*5
click to zoom
3D Models
NCP1096PAR2G - onsemi - 3D model - Small Outline Packages - TSSOP 16 4.4*5
click to zoom

NCP1096PAR2G Details

  • Manufacturer Part Number:

    NCP1096PAR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-16 EP

  • Package Description:

    TSSOP-16

  • Manufacturer Package Code:

    948BV

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    39 Weeks

  • Date Of Intro:

    2018-10-26

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    57 V

  • Supply Voltage-Nom (Vsup):

    12.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

NCP1096PAR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1096PAR2G should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
  • To ensure reliable startup and shutdown, ensure that the input voltage rises and falls monotonically, and that the enable pin (EN) is properly driven. A soft-start circuit can also be implemented to limit inrush current during startup.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10-22uF is recommended for the input capacitor. This helps to filter out input voltage noise and reduce the risk of oscillation.
  • To minimize ripple and noise, use a low-ESR output capacitor (e.g., ceramic or polymer) with a value of 10-47uF. Add a small series resistor (e.g., 1-10 ohms) to dampen the output filter and reduce ringing.
  • The NCP1096PAR2G can withstand input voltage transients up to 30V for a duration of 100ms, as specified in the datasheet. However, it's recommended to limit transients to 25V or less to ensure reliable operation.
