NCP2809BDMR2G - onsemi

Description: 135mW to a 16 load from a 5.0V power supply; Excellent PSRR (85dB Typical); Pop & Click noise protection circuit; Ultra Low Current Shutdown Mode; 2.2V - 5.5V Operation; Superior THD+N: Less than 0.01%; External Turn-on and Turn-off configuration capability; Ultra Thin MicroDFN-10 (3x3x0.55mm); Pb-Free Package is Available

Download NCP2809BDMR2G Model
Schematic

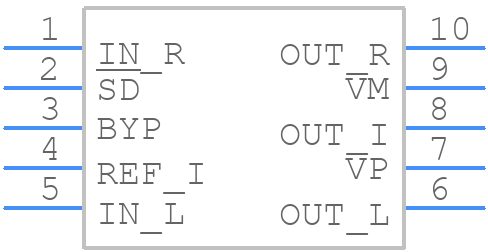

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP2809BDMR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - Micro10 (Pb−Free)
click to zoom
3D Models
NCP2809BDMR2G - onsemi  - 3D model - Small Outline Packages - Micro10 (Pb−Free)
click to zoom

NCP2809BDMR2G Details

  • Manufacturer Part Number:

    NCP2809BDMR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    C/O FOR MICRO 10 PKG

  • Pin Count:

    10

  • Manufacturer Package Code:

    846B

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.131 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3.6 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

NCP2809BDMR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP2809BDMR2G should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. A minimum of 2oz copper thickness is recommended.
  • To ensure reliable start-up, ensure that the input voltage is within the specified range, the output capacitor is properly sized, and the feedback network is correctly configured. Additionally, a soft-start circuit can be implemented to reduce inrush current and prevent voltage overshoot.
  • When selecting the output inductor and capacitor values, consider the desired output voltage ripple, inductor core saturation, and capacitor ESR. A good starting point is to use the values recommended in the datasheet, and then optimize based on specific application requirements.
  • To minimize EMI, use a shielded inductor, keep the switching node (SW) away from sensitive circuits, and use a common-mode choke or ferrite bead on the input lines. Additionally, ensure good PCB layout practices, such as separating analog and digital grounds, and using a solid ground plane.
