A good PCB layout for the NCP2811BDTBR2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane for the device to reduce noise and interference.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the device properly and use a stable input voltage source. If oscillations occur, try adding a small resistor in series with the output capacitor to dampen the oscillations.
The NCP2811BDTBR2G is rated for operation from -40°C to 125°C ambient temperature range. However, it's recommended to derate the device's performance at higher temperatures to ensure reliability and longevity.
Yes, the NCP2811BDTBR2G is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive-grade components. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the required reliability and quality standards.
To troubleshoot issues with the NCP2811BDTBR2G, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly decoupled and that the input and output capacitors are of high quality. Use an oscilloscope to measure the output voltage and current waveforms to identify any anomalies. If the issue persists, try replacing the device or checking for any layout or component issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP2811BDTBR2G Overview

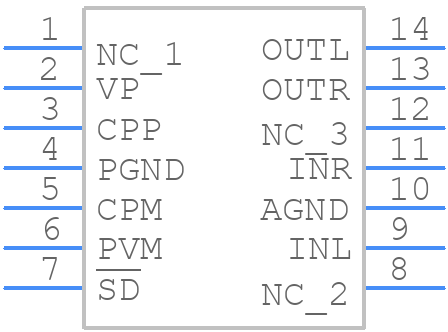

Use the download button to access the NCP2811BDTBR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP28,
or try a keyword search, such as Audio/Video Amplifiers
