A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the package to connect the thermal pad to the copper area.
Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Also, consider the power dissipation and thermal resistance of the package when designing the system. A heat sink or thermal interface material may be necessary for high-power applications.
The NCP300LSN27T1G has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing. A minimum of 2kV human body model (HBM) and 200V machine model (MM) ESD protection is recommended.
Yes, the NCP300LSN27T1G is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using automotive-grade processes. However, additional testing and validation may be required for specific applications.
The optimal input capacitor value depends on the input voltage ripple, output voltage, and output current requirements. A general guideline is to use a capacitor with a value between 1uF to 10uF, with a voltage rating of at least 1.5 times the input voltage. However, simulation and testing may be necessary to determine the optimal value for a specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP300LSN27T1G Overview

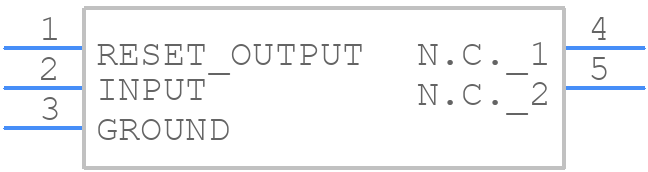

Use the download button to access the NCP300LSN27T1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP30,
or try a keyword search, such as Power Management Circuits
