NCP300LSN28T1G - onsemi

Description: Supervisory Circuits 2.8V Detector w/Reset Low

Download NCP300LSN28T1G Model

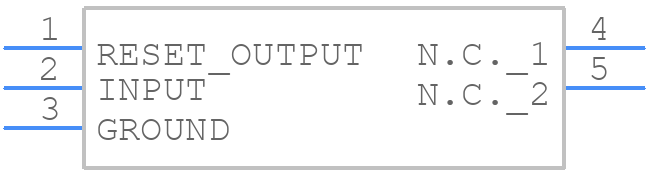

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP300LSN28T1G - onsemi PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - NCP300LSN28T1G-1
click to zoom
3D Models
NCP300LSN28T1G - onsemi  - 3D model - SOT23 (5-Pin) - NCP300LSN28T1G-1
click to zoom

NCP300LSN28T1G Details

  • Manufacturer Part Number:

    NCP300LSN28T1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSOP-5

  • Pin Count:

    5

  • Manufacturer Package Code:

    483

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE DETECTOR

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.0013 mA

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    0.8 V

  • Supply Voltage-Nom (Vsup):

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.5 mm

NCP300LSN28T1G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal management, use a heat sink if necessary, and follow the recommended PCB layout guidelines. Also, consider derating the device's power handling at high temperatures.
  • The maximum allowed voltage on the input pins is 5.5V, exceeding this may cause damage to the device.
  • Yes, the NCP300LSN28T1G is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, additional testing and validation may be required.
  • Check the input voltage, ensure proper decoupling, and verify the enable pin is properly biased. Also, check for any short circuits or excessive current draw.
