A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. The datasheet provides a recommended land pattern, but a more detailed layout guide can be found in the onsemi application note AND8327/D.
The NCP300LSN34T1G requires a bias voltage of 4.5V to 5.5V on the VCC pin. A stable voltage regulator, such as the NCP1117, can be used to generate this voltage. Additionally, a 0.1uF decoupling capacitor should be placed close to the VCC pin to filter out noise.
The maximum power dissipation for the NCP300LSN34T1G is 2.5W. However, this value can be derated based on the ambient temperature and the thermal resistance of the PCB. A more detailed thermal analysis should be performed to ensure the device operates within its safe operating area.
The NCP300LSN34T1G is an industrial-grade device, but it is not specifically designed for high-reliability or automotive applications. For such applications, onsemi offers other devices with enhanced reliability and quality control, such as the NCP300LSN34T1GQ or NCP300LSN34T1GX.
The NCP300LSN34T1G has built-in overvoltage protection, but it is still recommended to add external protection components, such as a TVS diode and a fuse, to protect against overvoltage and overcurrent conditions. A more detailed protection scheme can be found in the onsemi application note AND8327/D.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP300LSN34T1G Overview

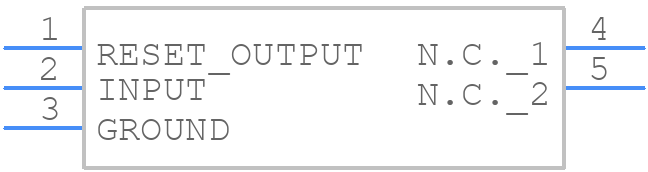

Use the download button to access the NCP300LSN34T1G schematic symbol, PCB footprint, and 3D model.
