NCP367OPMUEOTBG - onsemi

Description: Battery Management OVP-OCP BATTERY CHARGE

Download NCP367OPMUEOTBG Model

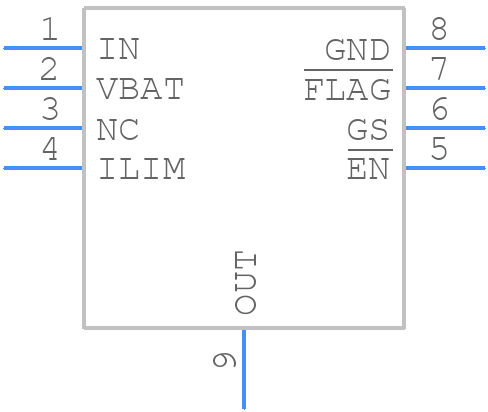

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP367OPMUEOTBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN
click to zoom
3D Models
NCP367OPMUEOTBG - onsemi  - 3D model - Small Outline No-lead - DFN
click to zoom

NCP367OPMUEOTBG Details

  • Manufacturer Part Number:

    NCP367OPMUEOTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN8 2.0x2.2, 0.5P

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    506BP

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.13 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

NCP367OPMUEOTBG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCP367OPMUEOTBG is -40°C to 150°C.
  • To ensure stability, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1Ω or less, and to place the capacitor as close to the output pin as possible.
  • The recommended input capacitor value is 1uF to 10uF, with a voltage rating of 10V or higher, and an ESR of 1Ω or less.
  • The output voltage can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the reference voltage (1.25V for the NCP367OPMUEOTBG).
  • The maximum input voltage that the NCP367OPMUEOTBG can handle is 18V.
