NCP392BRFCCT1G - onsemi

Description: ON SEMICONDUCTOR - NCP392BRFCCT1G - OV PROTECTION CTRL, 5.95V, WLCSP-12

Download NCP392BRFCCT1G Model

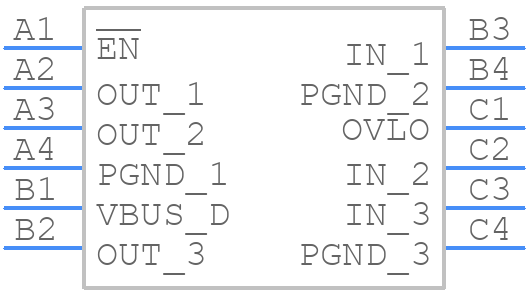

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP392BRFCCT1G - onsemi PCB footprint - BGA - BGA - WLCSP12, 1.3x2.0 CASE 567JM ISSUE A
click to zoom
3D Models
NCP392BRFCCT1G - onsemi  - 3D model - BGA - WLCSP12, 1.3x2.0 CASE 567JM ISSUE A
click to zoom

NCP392BRFCCT1G Details

  • Manufacturer Part Number:

    NCP392BRFCCT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    WLCSP-12

  • Manufacturer Package Code:

    567JM

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PBGA-B12

  • Length:

    2.025 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.285 mm

NCP392BRFCCT1G Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2 oz copper thickness and a thermal relief pattern are recommended. Refer to the onsemi application note AND9093/D for more details.
  • The device requires a stable input voltage (VIN) and a proper bias voltage (VBIAS) to operate correctly. Ensure VIN is within the recommended range (4.5V to 18V) and VBIAS is set to 5V ± 10% for optimal performance.
  • The maximum current rating for the output pins is 1A per pin. However, the total current drawn from the device should not exceed 3A to prevent overheating and ensure reliable operation.
  • Use a TVS diode or a zener diode to protect the device from overvoltage conditions. For overcurrent protection, use a fuse or a PTC resettable fuse in series with the input voltage. Additionally, consider using a current-sensing resistor to monitor the current and trigger a shutdown or alarm in case of an overcurrent condition.
  • The recommended operating temperature range for the NCP392BRFCCT1G is -40°C to 125°C. However, the device can operate up to 150°C for short periods of time, but this may affect its reliability and lifespan.
