NCP4371AADDR2G - onsemi

Description: Obsolete - HVDCP Controller for Qualcomm Quick Charge 3.0

Download NCP4371AADDR2G Model

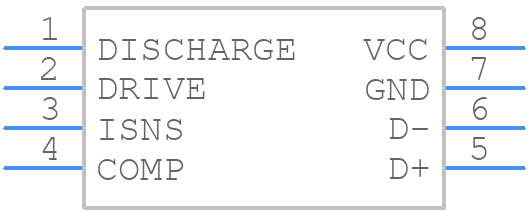

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP4371AADDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−8 NB CASE 751−07_A
click to zoom
3D Models
NCP4371AADDR2G - onsemi  - 3D model - Small Outline Packages - SOIC−8 NB CASE 751−07_A
click to zoom

NCP4371AADDR2G Details

  • Manufacturer Part Number:

    NCP4371AADDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

NCP4371AADDR2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane, using thermal vias to connect the exposed pad to the ground plane, and keeping the thermal path as short as possible.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal design guidelines, use a heat sink if necessary, and ensure that the device is operated within its specified temperature range.
  • The maximum allowed voltage on the EN pin is 6V, and it is recommended to keep it within the specified range to avoid damage to the device.
  • Yes, the NCP4371AADDR2G can be used in battery-powered devices, but it is recommended to consider the quiescent current and shutdown current to minimize power consumption and extend battery life.
  • To troubleshoot issues with the device not turning on or off properly, check the EN pin voltage, ensure that the input voltage is within the specified range, and verify that the device is properly connected to the load and power source.
