NCP4545IMNTWG - onsemi

Description: ON Semiconductor NCP4545IMNTWG, 1-Channel Load Switch IC, Controlled Load Switch, 3 → 5.5V, 1.98W 18-Pin, QFN

Download NCP4545IMNTWG Model

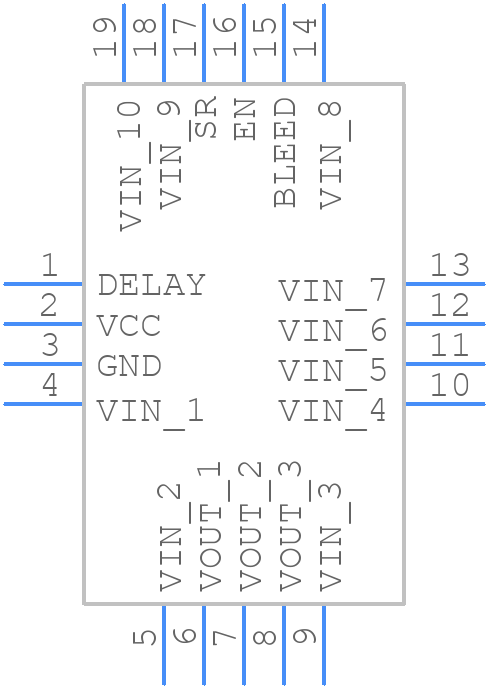

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP4545IMNTWG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN18 3x3 0.5P CASE485BF IS
click to zoom
3D Models
NCP4545IMNTWG - onsemi  - 3D model - Quad Flat No-Lead - QFN18 3x3 0.5P CASE485BF IS
click to zoom

NCP4545IMNTWG Details

  • Manufacturer Part Number:

    NCP4545IMNTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN18, 3x3, 0.5P

  • Package Description:

    QFN-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    485BF

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XQCC-N18

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCP4545IMNTWG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. The device's thermal pad should be connected to the ground plane to dissipate heat efficiently.
  • To ensure the device operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current. Ensure the input voltage is within the recommended range of 2.5V to 5.5V, and the output voltage is set within the recommended range of 0.8V to 3.3V. Also, ensure the output current does not exceed the recommended maximum current of 1.5A.
  • When handling the device, take precautions to prevent electrostatic discharge (ESD) damage. Use an ESD wrist strap or mat, and handle the device by the body or pins, not the leads. Avoid touching the device's pins or leads with bare hands, as the oils from human skin can cause damage.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current. Ensure the input voltage is within the recommended range, and the output voltage is set correctly. Check for any short circuits or overcurrent conditions that may be affecting the output voltage regulation.
  • The device's package has a thermal resistance of 30°C/W. To ensure reliable operation, keep the device's junction temperature below 125°C. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device.
