NCP45491XMNTWG - onsemi

Description: Translates and scales voltage and currents on buses up to 26V; Ultra-low offset shunt amplifier (<150μV); Single device monitors up to 4 supplies; May Be Paired for Monitoring Up To Eight Supplies; Very low power down current; All Channels Individually Gain Programmable by External Resistor Selection; Fast Settling Time; Real-Time Indication of All Bus Voltages Valid; Adjustable Output Common-Mode Voltage Adapts to Most External ADCs; Lead-Free Device

Download NCP45491XMNTWG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

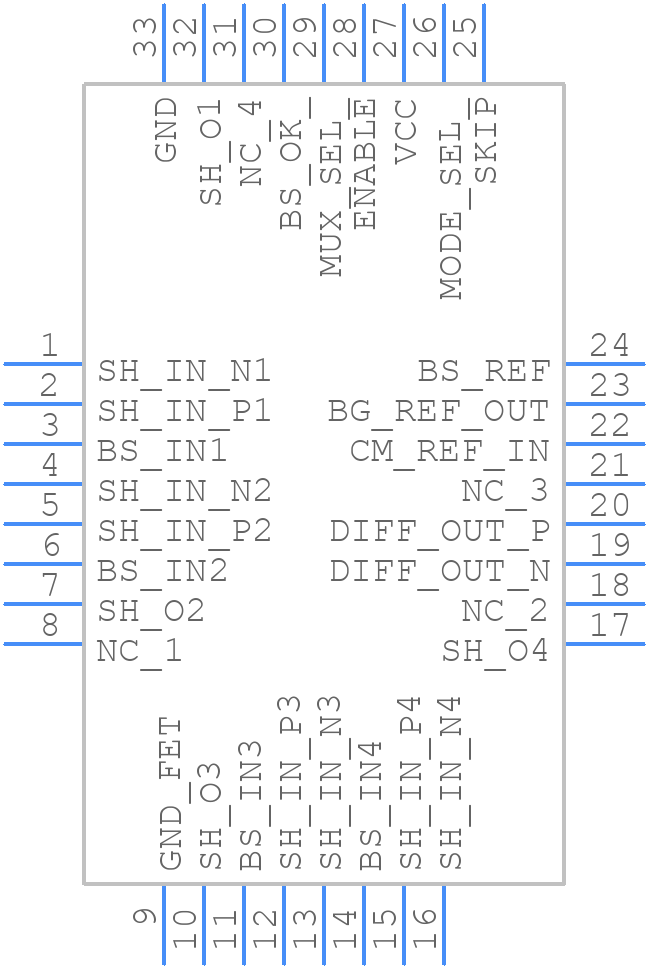

NCP45491XMNTWG - onsemi PCB footprint - Other - Other - QFN32
click to zoom
3D Models
NCP45491XMNTWG - onsemi  - 3D model - Other - QFN32
click to zoom

NCP45491XMNTWG Details

  • Manufacturer Part Number:

    NCP45491XMNTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN-32

  • Package Description:

    QFN-32

  • Manufacturer Package Code:

    485CD

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HIGH SIDE POWER/CURRENT MONITOR

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.8 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm
