NCP45496XMNWTWG - onsemi

Description: High-accuracy scaled current output; Internal ADC provides digitized power measurements; Single device monitors up to 2 supplies; Channel gains are individually programmable over SVID bus; Fast settling time; RoHS/REACH Compliant Device

Download NCP45496XMNWTWG Model
Schematic

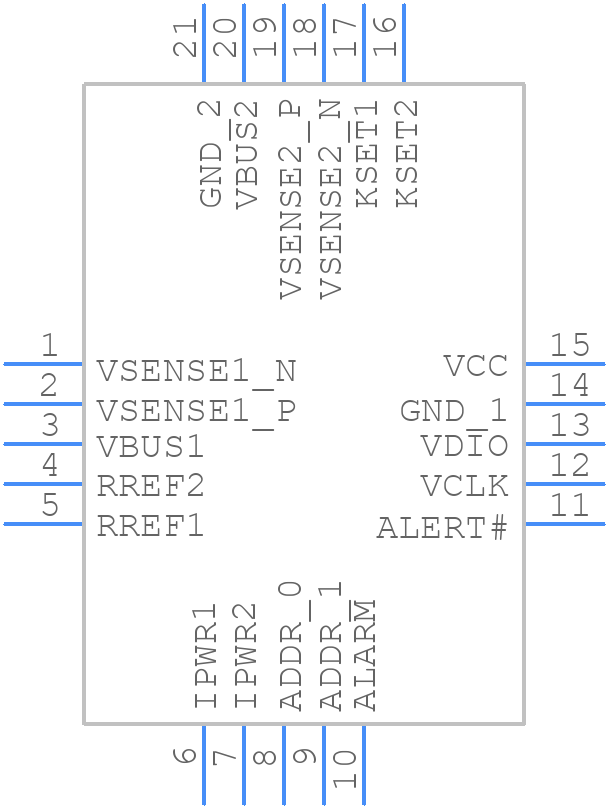

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP45496XMNWTWG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NCP45496XMNWTWG
click to zoom
3D Models
NCP45496XMNWTWG - onsemi  - 3D model - Quad Flat No-Lead - NCP45496XMNWTWG
click to zoom

NCP45496XMNWTWG Details

  • Manufacturer Part Number:

    NCP45496XMNWTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-20

  • Manufacturer Package Code:

    485BC

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Analog IC - Other Type:

    BATTERY MONITOR

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

NCP45496XMNWTWG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for good airflow.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using thermal interface materials and following proper soldering techniques.
  • Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, decreased performance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
  • To troubleshoot OVP and UVP issues, start by verifying the input voltage and ensuring it's within the recommended range. Check the device's pinouts and connections for any signs of damage or corrosion. Use an oscilloscope to monitor the input voltage and device behavior. Consult the datasheet and application notes for guidance on OVP and UVP thresholds and response times.
  • To minimize EMI and ensure EMC, follow proper PCB layout and design guidelines, use shielding and filtering components as needed, and ensure that the device is properly grounded. Consult the datasheet and application notes for specific guidance on EMI and EMC considerations.
