Description:Soft-Start via Slew Rate Control (Adjustable); Ultra-Low On-Resistance; Input Voltage Range 0.5 V to 13.5 V (18V Tolerant); Low Standby Current; Quick Output Discharge Function (Adjustable); No External Components Required; Enable Pins with CMOS Input Levels; Power Good Signaling ; Advanced Controller with Charge Pump; Integrated N-Channel MOSFET; Pb-Free Device
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad clear of any obstacles.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended operating temperature range (-40°C to 150°C). Implement proper thermal management, such as heat sinks or thermal interfaces, to keep the device temperature within the recommended range. Also, ensure that the device is properly soldered and that the PCB is designed to withstand high temperatures.
When handling the device, take precautions to prevent damage from electrostatic discharge (ESD). Use an ESD wrist strap or mat, and ensure that the workspace is ESD-safe. Avoid touching the device's pins or exposed internal components, and handle the device by the package body only. Also, avoid bending or flexing the leads, and ensure that the device is properly seated in its socket or on the PCB.
To troubleshoot issues with the device's output voltage regulation, first verify that the input voltage is within the recommended range. Check the output voltage using a multimeter, and ensure that the output capacitor is properly sized and connected. Verify that the feedback resistors are properly connected and that the feedback pin is not overloaded. If the issue persists, check the device's thermal performance and ensure that it is operating within its recommended temperature range.
When using the device in a high-reliability application, consider the device's failure modes and effects analysis (FMEA). Implement redundant systems or error correction mechanisms to mitigate the effects of device failure. Ensure that the device is properly derated, and that the system is designed to withstand single-point failures. Also, consider using devices with a higher reliability rating, such as automotive or aerospace-grade devices.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP45541IMNTWG-H Overview

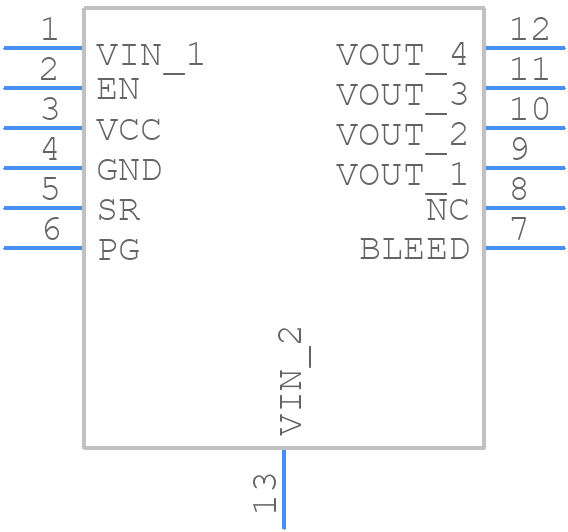

Use the download button to access the NCP45541IMNTWG-H schematic symbol, PCB footprint, and 3D model.
