NCP45560IMNTWG-H - onsemi

Description: IC Power Switch N-Channel High Side 17A 12-DFN (3x3) 5.5V,-40°C ~ 125°C

Download NCP45560IMNTWG-H Model

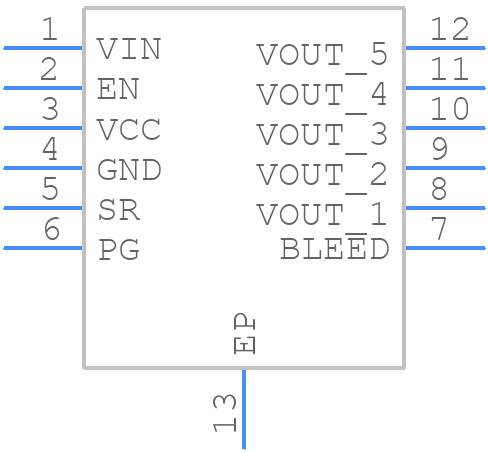

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP45560IMNTWG-H - onsemi PCB footprint - Other - Other - DFN12 3x3, 0.5P CASE 506CD ISSUE A_2026
click to zoom
3D Models
NCP45560IMNTWG-H - onsemi  - 3D model - Other - DFN12 3x3, 0.5P CASE 506CD ISSUE A_2026
click to zoom

NCP45560IMNTWG-H Details

  • Manufacturer Part Number:

    NCP45560IMNTWG-H

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN12 3x3, 0.5P

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    506CD

  • Similar Group:

    DR071013YYYY10441299

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    Load switch

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.75 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.35V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCP45560IMNTWG-H Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and ensure that the PCB is designed to minimize thermal resistance.
  • To ensure the device is properly biased, make sure to follow the recommended voltage and current ratings specified in the datasheet. Ensure that the input voltage is within the recommended range, and that the output voltage is set correctly using the FB pin. Also, ensure that the device is properly decoupled using capacitors and resistors as recommended in the datasheet.
  • To ensure EMI and EMC compliance, follow proper PCB layout and design guidelines, such as keeping the switching node (SW) away from sensitive nodes, using a shielded inductor, and minimizing loop areas. Also, ensure that the device is properly filtered using input and output capacitors, and that the system is designed to meet the required EMI and EMC standards.
  • To troubleshoot issues with the device, start by checking the PCB layout and design for any errors or omissions. Verify that the device is properly biased and that the input and output voltages are within the recommended range. Check for any signs of overheating, and ensure that the device is properly decoupled. Use an oscilloscope to measure the switching node and output voltage waveforms to identify any issues.
  • To ensure proper thermal design and heat sinking, follow the recommended thermal design guidelines in the datasheet. Ensure that the device is mounted on a heat sink or thermal pad, and that the thermal interface material is properly applied. Verify that the thermal resistance of the system is within the recommended range, and that the device is properly cooled to prevent overheating.
