A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and implement thermal management techniques such as thermal monitoring and shutdown. Additionally, consider using a thermally conductive material for the PCB and ensure good airflow around the device.
Using a lower input voltage than the recommended 12V may result in reduced output power, efficiency, and reliability. Using a higher input voltage may cause overheating, reduced lifespan, or even damage to the device. It's essential to follow the recommended input voltage range to ensure optimal performance and reliability.
To troubleshoot issues with the OCP feature, check the input voltage, output current, and sense resistor values. Ensure that the sense resistor is correctly connected and that the output current is within the specified range. Also, verify that the OCP threshold is set correctly and that the device is not overheating.
To minimize EMI and EMC issues, follow proper PCB layout and design guidelines, use a suitable EMI filter, and ensure that the device is properly shielded. Additionally, consider using a spread-spectrum clock generator to reduce EMI emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP58921MNTWG Overview

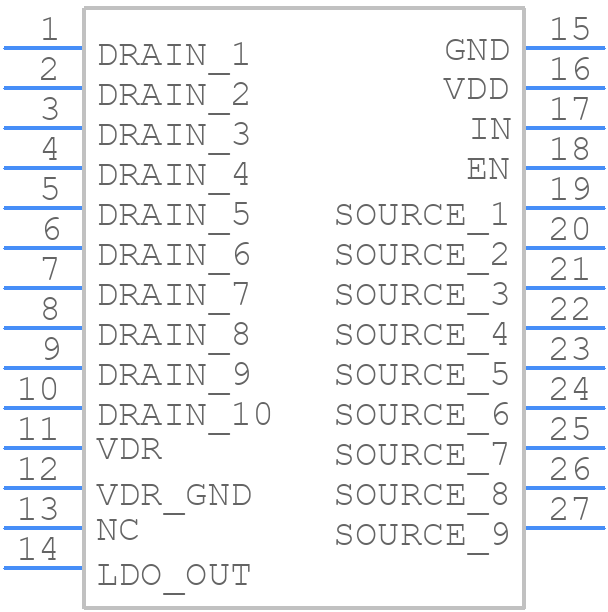

Use the download button to access the NCP58921MNTWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP58,
or try a keyword search, such as Power Management Circuits
