NCS213RMUTAG - onsemi

Description: Wide Common Mode Input Range: -0.3 to 26V; Low Offset Voltage: ±100 µV max.; Low Offset Drift: 0.5 µV/°C max.; Supply Voltage: 2.2 to 26V

Download NCS213RMUTAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

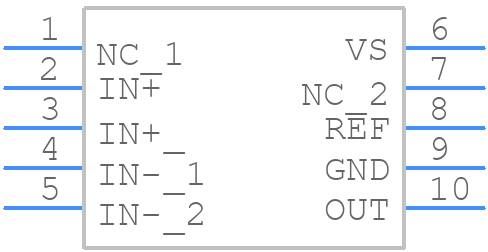

Symbol
NCS213RMUTAG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCS213RMUTAG - onsemi PCB footprint - Other - Other - NCS213RMUTAG-3
click to zoom
3D Models
NCS213RMUTAG - onsemi - 3D model - Other - NCS213RMUTAG-3
click to zoom

NCS213RMUTAG Details

  • Manufacturer Part Number:

    NCS213RMUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UQFN-10

  • Package Description:

    UQFN-10

  • Manufacturer Package Code:

    488AT

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2018-07-12

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-XQCC-N10

  • JESD-609 Code:

    e4

  • Length:

    1.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.4 mm

NCS213RMUTAG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCS213RMUTAG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 10uF capacitor to ground. The VBIAS pin should be connected to a voltage divider network that sets the desired output common-mode voltage. The VREF pin should be connected to a stable voltage reference.
  • The maximum allowable power dissipation for the NCS213RMUTAG is 1.4W. Exceeding this limit can cause the device to overheat and potentially fail. Ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended operating range.
  • To troubleshoot oscillations or instability issues, check the PCB layout for any signs of resonance or impedance mismatch. Ensure that the input and output traces are properly terminated, and that the device is properly decoupled. Also, check the power supply for any noise or ripple that may be causing the issue.
  • The NCS213RMUTAG is a sensitive device and requires proper ESD protection. Use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins to protect against electrostatic discharge.
