The recommended PCB layout for the NCS2564DTBR2G is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signal traces separate to minimize noise and interference. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
To optimize the performance of the NCS2564DTBR2G in a high-temperature environment, it's recommended to use a heat sink or a thermal pad to dissipate heat, and to ensure good airflow around the device. Additionally, it's recommended to reduce the power supply voltage and to use a lower clock frequency to reduce power consumption and heat generation.
The maximum clock frequency that can be used with the NCS2564DTBR2G is 100 MHz, but it's recommended to use a clock frequency of 50 MHz or lower to ensure reliable operation and to minimize power consumption.
To troubleshoot issues with the NCS2564DTBR2G, it's recommended to use a logic analyzer or an oscilloscope to monitor the digital signals, and to check the power supply voltage and current consumption. Additionally, it's recommended to check the PCB layout and the component values to ensure that they meet the recommended specifications.
The NCS2564DTBR2G is compatible with a 3.3V power supply, but it's not recommended to use a 1.8V power supply as it may not provide enough voltage headroom for reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCS2564DTBR2G Overview

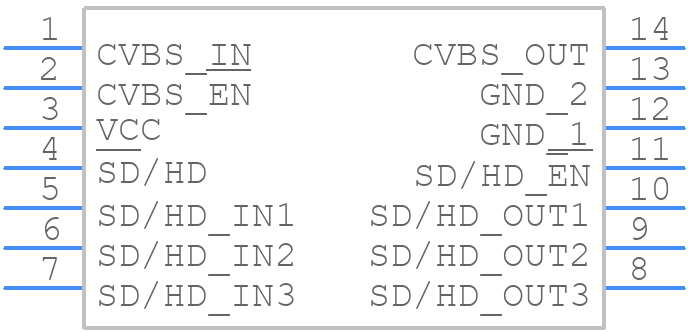

Use the download button to access the NCS2564DTBR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS25,
or try a keyword search, such as Audio/Video Amplifiers
