A good PCB layout for the NCS37020DTBR2G involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended PCB layout, use a sufficient output capacitor (at least 10uF), and ensure that the input voltage is within the recommended range. Additionally, avoid overloading the output and ensure that the device is operated within its recommended operating conditions.
The maximum output current of the NCS37020DTBR2G is 2A. However, it's recommended to derate the output current based on the ambient temperature and the device's power dissipation.
The NCS37020DTBR2G is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper heat sinking to prevent overheating.
To protect the NCS37020DTBR2G from input voltage transients, use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. Additionally, ensure that the input capacitor is rated for the maximum input voltage and is placed close to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCS37020DTBR2G Overview

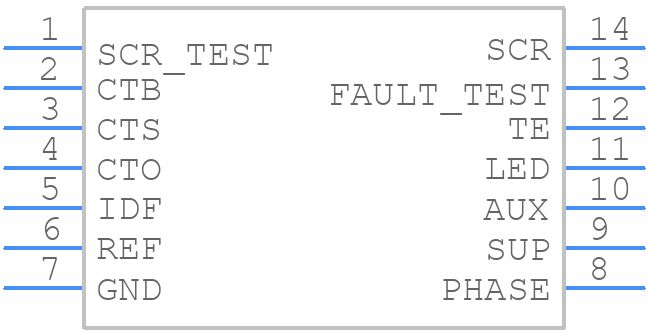

Use the download button to access the NCS37020DTBR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS37,
or try a keyword search, such as Power Management Circuits
