NCS5651MNTXG - onsemi

Description: Rail-to-rail : drop of only +/-1 V with Iout = 1.5A; VBB supply voltage 6-12 V; Flexible 4th-order filtering; Current-limit set with one resistor; Diagnostic flags level shitfted to VCC to simplify interface with external MCU - thermal warning flag with flexible threshold setting - thermal error flag and hutdown - overcurrent flag; Enable/shutdown control; Extended junction temperature range : -40 °C to +125 °C; Small package : 20-pin 4x4x1 mm3 NQFP with exposed thermal pad; Optimized for operation in the C

Download NCS5651MNTXG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

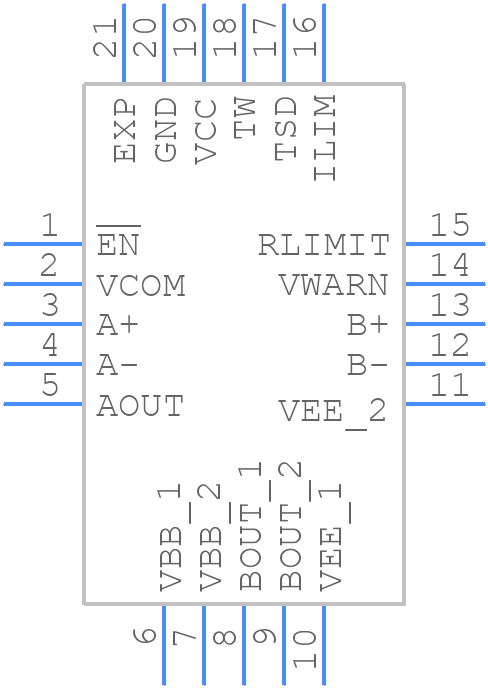

NCS5651MNTXG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCS5651MNTXG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN20
click to zoom
3D Models
NCS5651MNTXG - onsemi - 3D model - Quad Flat No-Lead - QFN20
click to zoom

NCS5651MNTXG Details

  • Manufacturer Part Number:

    NCS5651MNTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-20

  • Manufacturer Package Code:

    485E

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    27 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Interface IC Type:

    LINE DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30
