A good PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path short and direct to the heat sink or thermal pad. Refer to onsemi's application note AND8393/D for more details.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions, use a heat sink or thermal pad, and consider using a thermal interface material (TIM) to improve heat transfer. Also, ensure that the device is properly soldered and the PCB is designed to minimize thermal resistance.
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the recommended operating range of 3.3V ± 10%.
While the NCS8353MNTXG is rated for 3.3V operation, it can tolerate 5V on the input pins for a short duration. However, for reliable operation, it's recommended to use a voltage regulator or level shifter to ensure the input voltage remains within the recommended operating range of 3.3V ± 10%.
The NCS8353MNTXG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is properly grounded during handling.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCS8353MNTXG Overview

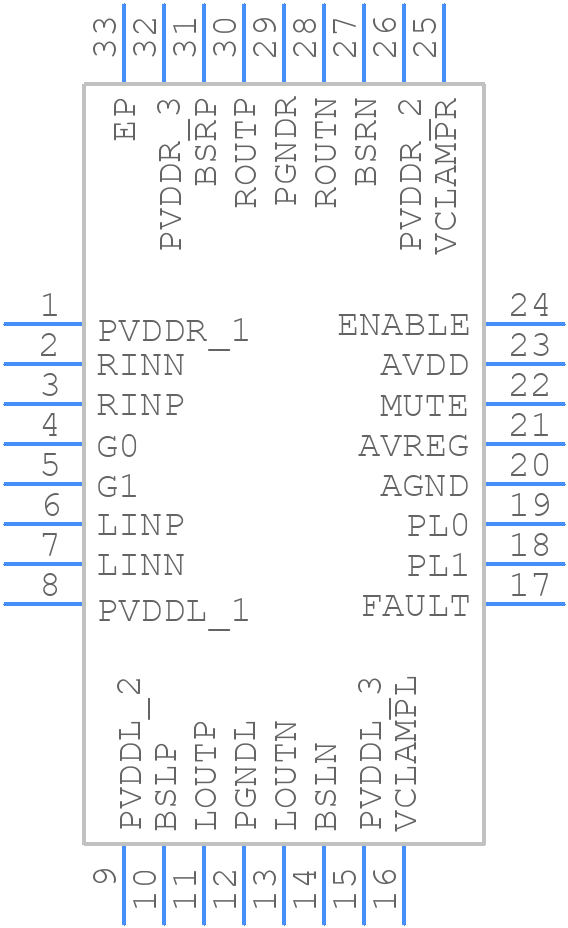

Use the download button to access the NCS8353MNTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS83,
or try a keyword search, such as Audio/Video Amplifiers
