NCV431BVDR2G - onsemi

Description: Low Output Noise Voltage; Programmable Output Voltage to 36 V; Voltage Reference Tolerance: +/- 0.4%, Typ @ 25°C (TL431B); Equivalent Full-Range Temperature Coefficient of 50 ppm/ °C Typical; Low Dynamic Output Impedance, 0.22 W Typical; Temperature Compensated for Operation over Full Rated Operating Temperature Range; Sink Current Capability of 1.0 mA to 100 mA; Pb-Free Packages are Available

Download NCV431BVDR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

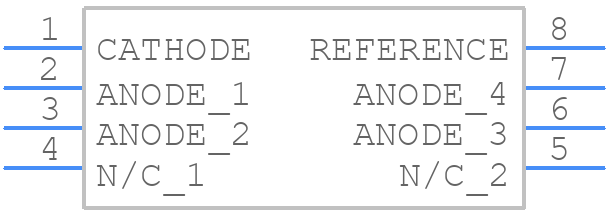

Symbol
NCV431BVDR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV431BVDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−8 (Pb−Free)
click to zoom
3D Models
NCV431BVDR2G - onsemi - 3D model - Small Outline Packages - SOIC−8 (Pb−Free)
click to zoom

NCV431BVDR2G Details

  • Manufacturer Part Number:

    NCV431BVDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    36 V

  • Output Voltage-Min:

    2.475 V

  • Output Voltage-Nom:

    2.495 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    0.116 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Width:

    3.9 mm

NCV431BVDR2G Frequently Asked Questions (FAQs)

  • For optimal thermal performance, it is recommended to use a thermal pad on the bottom of the package, and to connect it to a large copper area on the PCB. This helps to dissipate heat efficiently. Additionally, keeping the PCB traces and vias away from the thermal pad can help reduce thermal resistance.
  • To ensure reliable operation in high-temperature environments, it is essential to follow the recommended operating temperature range (up to 150°C) and to provide adequate heat sinking. Additionally, consider using thermal interface materials (TIMs) to improve heat transfer between the device and the heat sink.
  • The recommended input capacitor is a 1-10 μF ceramic capacitor with a voltage rating of at least 25V. The recommended output capacitor is a 10-100 μF ceramic capacitor with a voltage rating of at least 10V. These capacitors help to filter out noise and ensure stable operation.
  • To protect the device from overvoltage and undervoltage conditions, consider using voltage supervisors or reset ICs that can detect and respond to out-of-range voltage conditions. Additionally, using a voltage clamp or a transient voltage suppressor (TVS) can help to protect the device from voltage transients.
  • The recommended soldering profile for the NCV431BVDR2G is a peak temperature of 260°C, with a dwell time of 10-30 seconds. It is essential to follow the recommended soldering profile to prevent damage to the device.
