NCV459MNWTBG - onsemi

Description: 0.75V − 5.5V Operating Range; 23mΩ N−MOSFET; DC Current Up to 4A; Output Auto−Discharge Option; DFNW8, 3 x 3 mm, 0.65 pitch; Vbias Input Rail; Output Rise Time Control

Download NCV459MNWTBG Model

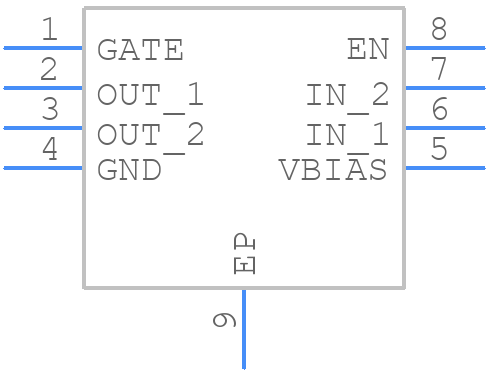

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV459MNWTBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFNW8 3x3, 0.65P CASE 507AB
click to zoom
3D Models
NCV459MNWTBG - onsemi  - 3D model - Small Outline No-lead - DFNW8 3x3, 0.65P CASE 507AB
click to zoom

NCV459MNWTBG Details

  • Manufacturer Part Number:

    NCV459MNWTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-8

  • Package Description:

    DFNW-8

  • Manufacturer Package Code:

    507AB

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    Load switch

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    0.75 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCV459MNWTBG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCV459MNWTBG is -40°C to 150°C.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm.
  • The recommended input capacitor value for the NCV459MNWTBG is 1uF to 10uF, with a voltage rating of 50V or higher.
  • Yes, the NCV459MNWTBG is suitable for high-reliability applications, such as automotive and industrial systems, due to its high-quality manufacturing process and rigorous testing.
  • To protect the NCV459MNWTBG from overvoltage and undervoltage conditions, it is recommended to use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended operating range.
