Description:Low temperature boost current up to 1100 mA; Programmable current stabilization phase; Enhanced Under Voltage Management; Sensorless step-loss detection; Automatic selection of fast and slow decay mode; No external flyback diodes required; Motion qualification mode; Configurable speeds and acceleration; Field programmable node addresses; Dynamically allocated identifiers; Both physical and data-link layers (conform to LIN rev. 1.3); LIN bus short circuit protection to supply and ground; High temp warning an
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to consider the device's thermal derating. Additionally, ensure that the device is operated within its specified temperature range.
The NCV70627DQ002AR2G has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent ESD damage. For latch-up prevention, ensure that the device is operated within its specified voltage and current ranges, and that the input signals are properly filtered and terminated.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the device is operated within its specified input voltage range, and that the output load is within the specified current range. Also, verify that the feedback resistors are correctly selected and connected.
The recommended input capacitor is a 10uF ceramic capacitor with a voltage rating of 50V or higher. For the output capacitor, a 22uF ceramic capacitor with a voltage rating of 25V or higher is recommended. However, the specific capacitor values and types may vary depending on the application requirements and PCB layout.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV70627DQ002AR2G Overview

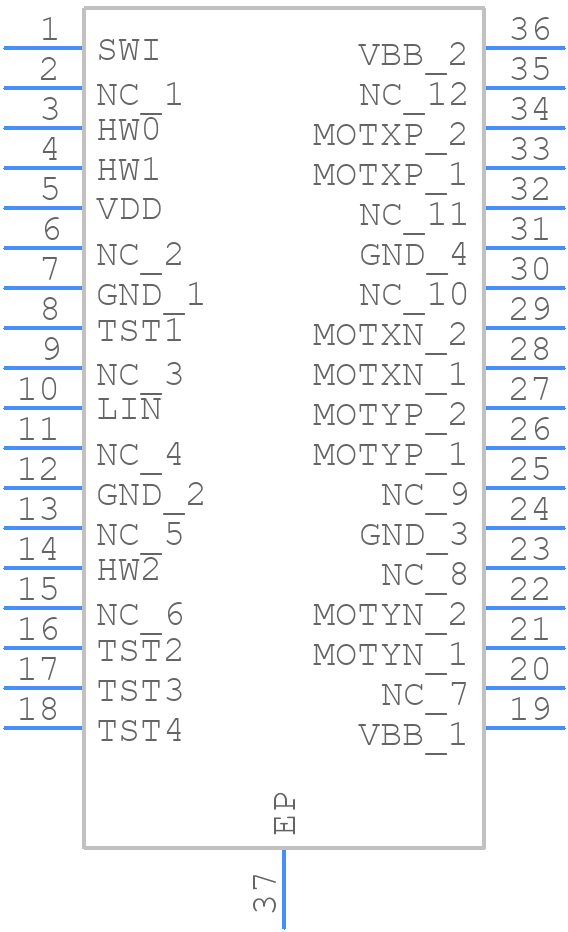

Use the download button to access the NCV70627DQ002AR2G schematic symbol, PCB footprint, and 3D model.
