Description:Low temperature boost current up to 1100 mA; Programmable current stabilization phase; Enhanced Under Voltage Management; Sensorless step-loss detection; Automatic selection of fast and slow decay mode; No external flyback diodes required; Motion qualification mode; Configurable speeds and acceleration; Field programmable node addresses; Dynamically allocated identifiers; Both physical and data-link layers (conform to LIN rev. 1.3); LIN bus short circuit protection to supply and ground; High temp warning an
The recommended PCB layout for optimal thermal performance involves using a 2-layer or 4-layer board with a solid ground plane, placing thermal vias under the device, and using a thermal pad on the bottom of the device. Additionally, keeping the thermal traces as short and wide as possible can help to reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal management system, and consider derating the device's power dissipation. Additionally, using a thermally conductive material, such as a heat sink or thermal interface material, can help to reduce the device's junction temperature.
Using a different package type or pinout may affect the device's thermal performance, electrical characteristics, and PCB layout. It's essential to consult the datasheet and application notes for the specific package type or pinout being used, and to verify that the device meets the required specifications and performance criteria.
To troubleshoot issues related to overvoltage or undervoltage conditions, start by verifying the input voltage and ensuring it's within the recommended operating range. Check for any signs of physical damage, such as burn marks or blown fuses, and verify that the device is properly soldered to the PCB. Use an oscilloscope to monitor the input voltage and output voltage, and consult the datasheet for guidance on troubleshooting and fault detection.
The NCV70627MW002AR2G has built-in ESD protection and latch-up prevention measures, including internal ESD diodes and protection circuits. However, it's still essential to follow proper handling and assembly procedures to prevent ESD damage, and to use ESD protection devices, such as TVS diodes, in the system design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV70627MW002AR2G Overview

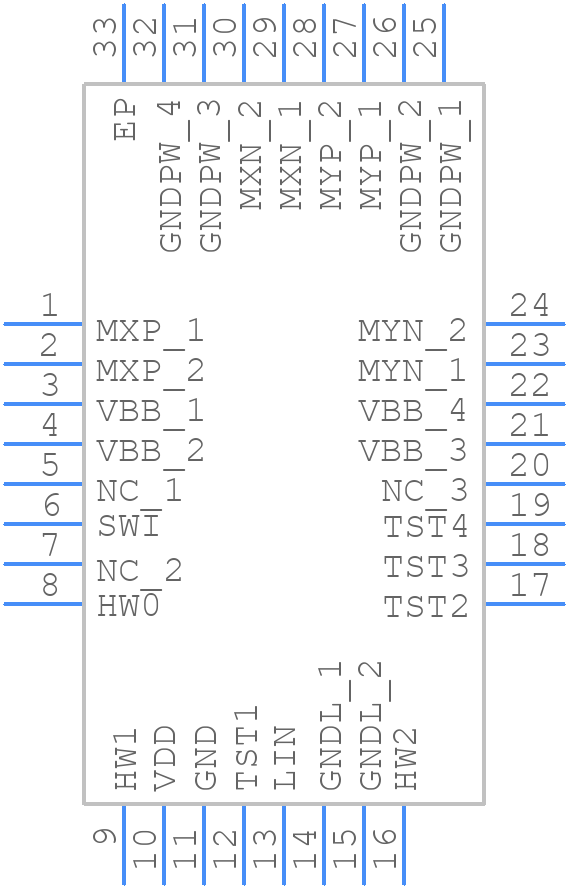

Use the download button to access the NCV70627MW002AR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV70,
or try a keyword search, such as Motion Control Electronics
