- Part Number NCV7425DW5R2G
- Manufacturer onsemi
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOIC 16W EP PW SUFFIX CASE 751AG-01
- Released Date Aug 23, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NCV7425DW5R2G Details
-
Manufacturer Part Number:
NCV7425DW5R2G
-
Brand Name:
ON Semiconductor
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Pin Count:
16
-
Manufacturer Package Code:
751AG
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
4 Weeks
-
Manufacturer:
onsemi
NCV7425DW5R2G Frequently Asked Questions (FAQs)
-
The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
-
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
-
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the specified Tj range to maintain reliability and performance.
-
Yes, the NCV7425DW5R2G is suitable for high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard and is designed to operate in harsh environments. However, it's essential to follow the recommended design guidelines and testing procedures to ensure compliance with the specific application requirements.
-
To troubleshoot issues related to the OCP feature, check the device's datasheet for the OCP threshold and response time. Verify that the input voltage and current are within the specified limits, and ensure that the device is properly soldered and connected to the PCB. If the issue persists, consider using a current sense resistor to monitor the current and verify that it's within the expected range.
Trust Checks
Community Provided
System Verified
Community Approved
NCV7425DW5R2G Overview

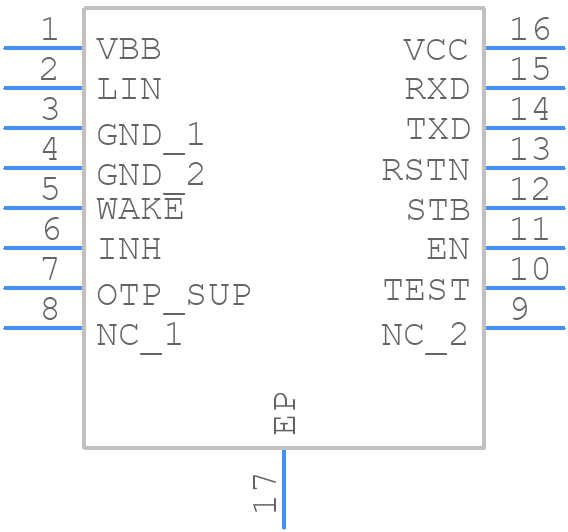

Use the download button to access the NCV7425DW5R2G schematic symbol, PCB footprint, and 3D model.
