NCV7428MW3R2G - onsemi

Description: 3.3 V or 5 V VOUT Supply depending on the Version from a Low−drop Voltage Regulator; LIN Transceiver; Protection and Monitoring Functions; These are Pb−Free Devices; Control Logic

Download NCV7428MW3R2G Model

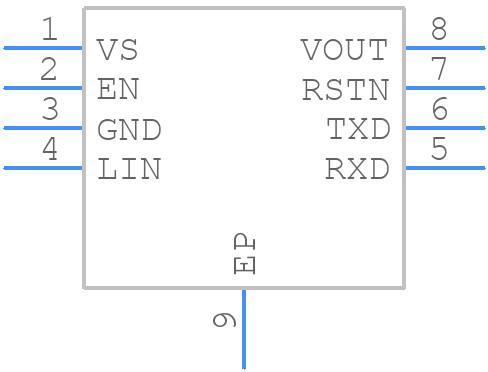

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV7428MW3R2G - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8, 3x3, 0.65P CASE 506DG ISSUE A
click to zoom
3D Models
NCV7428MW3R2G - onsemi  - 3D model - Small Outline No-lead - DFN8, 3x3, 0.65P CASE 506DG ISSUE A
click to zoom

NCV7428MW3R2G Details

  • Manufacturer Part Number:

    NCV7428MW3R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-8

  • Package Description:

    DFN-8

  • Manufacturer Package Code:

    507AB

  • Country Of Origin:

    Thailand

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    onsemi

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCV7428MW3R2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The PCB should also have sufficient copper area to dissipate heat.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to ensure that the device is operated within its specified temperature range. Additionally, consider using thermal interface materials and heat sinks to improve heat dissipation.
  • Exceeding the maximum junction temperature can lead to reduced device lifespan, decreased performance, and potentially even device failure. It's essential to ensure that the device operates within its specified temperature range to maintain reliability and performance.
  • To troubleshoot issues related to overvoltage protection, check the input voltage levels, ensure that the device is properly configured, and verify that the overvoltage protection threshold is set correctly. Also, check for any signs of physical damage or electrical overstress.
