NCV7721D2R2G - onsemi

Description: Ultra Low Quiescent Current in Sleep Mode; Power Supply Voltage Operation Down to 5 V; 2 High-Side and 2 Low-Side Drivers Connected as Half-Bridges; Internal Free-Wheeling Diodes; 0.5 A Continuous (1 A peak) Current; RDSon = 0.8 ohms (typ); Compliance with 5 V and 3.3 V systems; Overvoltage and Undervoltage Lockout; Fault Reporting; Current Limit; Internal fused leads in SOIC-14 Package; ESD protection up to 6 kV

Download NCV7721D2R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

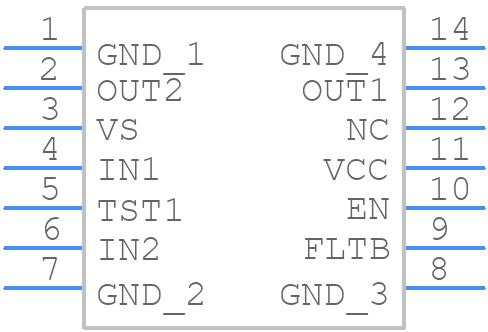

NCV7721D2R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV7721D2R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14
click to zoom
3D Models
NCV7721D2R2G - onsemi - 3D model - Small Outline Packages - SOIC-14
click to zoom

NCV7721D2R2G Details

  • Manufacturer Part Number:

    NCV7721D2R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14

  • Package Description:

    SOIC-14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    6.38

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

NCV7721D2R2G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCV7721D2R2G is -40°C to 150°C.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the output voltage can be stabilized by adding a 10nF capacitor between the VOUT and GND pins.
  • The maximum input voltage that the NCV7721D2R2G can handle is 28V. Exceeding this voltage may cause damage to the device.
  • The output current capability of the NCV7721D2R2G can be calculated using the formula: IOUT = (VIN - VOUT) / RDS(ON). Where VIN is the input voltage, VOUT is the output voltage, and RDS(ON) is the on-state resistance of the internal MOSFET.
  • The EN (Enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled and the output voltage is regulated. When the EN pin is pulled low, the device is disabled and the output voltage is turned off.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV7721D2R2G Overview

Use the download button to access the NCV7721D2R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV77, or try a keyword search, such as Motion Control Electronics
