The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
The recommended input capacitors are X7R or X5R ceramic capacitors with a minimum capacitance of 10uF and a voltage rating of 25V or higher. For output capacitors, use X7R or X5R ceramic capacitors with a minimum capacitance of 22uF and a voltage rating of 25V or higher.
To troubleshoot issues with the OCP feature, check the input voltage, output current, and sense resistor values. Ensure that the sense resistor is properly connected and that the OCP threshold is set correctly. Also, verify that the device is not overheating, which can trigger the OCP feature.
Yes, the NCV7728DPAR2G is AEC-Q100 qualified, making it suitable for automotive applications. However, it's essential to follow the device's recommended operating conditions, and ensure that the system design meets the required automotive standards and regulations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV7728DPAR2G Overview

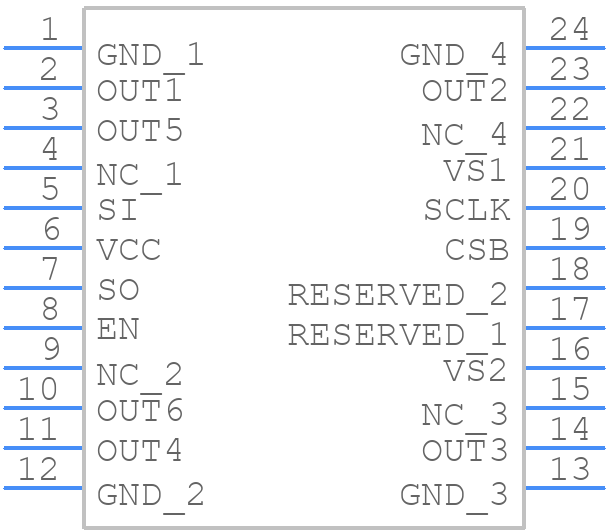

Use the download button to access the NCV7728DPAR2G schematic symbol, PCB footprint, and 3D model.
