NEO-M8L-06B - u-blox

Description: NEO-M8L RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS 1.561GHz, 1.575GHz, 1.602GHz -160dBm

Download NEO-M8L-06B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

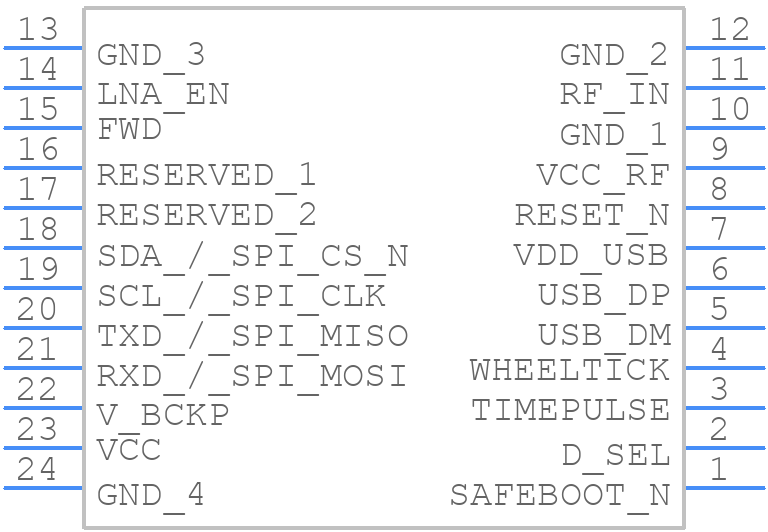

Symbol
NEO-M8L-06B - u-blox - PCB symbol
click to zoom

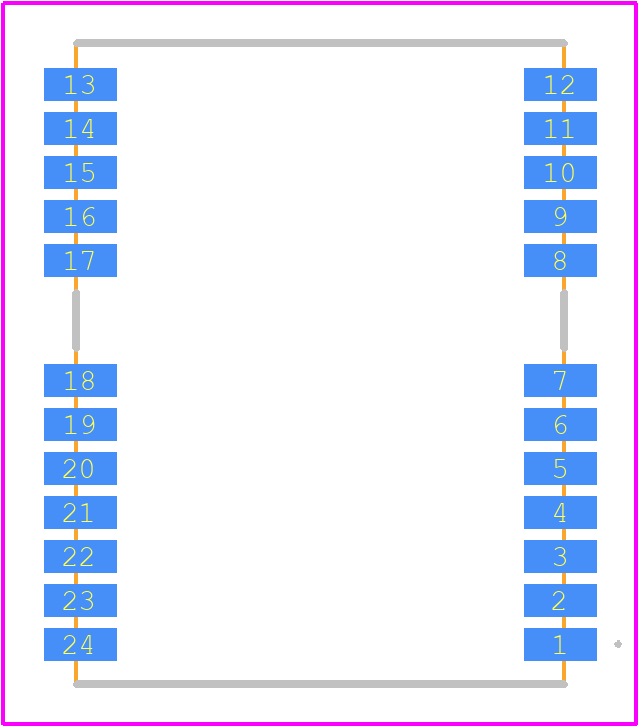

PCB Footprints
NEO-M8L-06B - u-blox PCB footprint - Other - Other - 24-SMD Module_2025
click to zoom
3D Models
NEO-M8L-06B - u-blox - 3D model - Other - 24-SMD Module_2025
click to zoom

NEO-M8L-06B Details

  • Manufacturer Part Number:

    NEO-M8L-06B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-24

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • JESD-30 Code:

    R-PDSO-N24

  • Length:

    16 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC24/28,.48,43

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100; ISO-16750; TS 16949

  • Seated Height-Max:

    2.6 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    GNSS Module

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    DUAL

  • Width:

    12.2 mm

NEO-M8L-06B Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first apply power to the module, then wait for at least 100 ms before sending any commands or data. This allows the module to complete its internal initialization.
  • To use an external antenna, connect the antenna to the RF_IN pin and set the ANT_EXT bit in the CFG_ANTENA register (0x27) to 1. Also, ensure that the antenna is properly matched to the module's 50-ohm input impedance.
  • The maximum update rate for the NEO-M8L-06B is 18 Hz, which means the module can provide up to 18 position fixes per second.
  • To enable SBAS support, set the CFG_SBAS bit in the CFG_NAV5 register (0x24) to 1. This enables the module to use SBAS corrections to improve positioning accuracy.
  • The typical current consumption of the NEO-M8L-06B is around 45 mA during continuous mode, but this can vary depending on the specific operating conditions and configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NEO-M8L-06B Overview

Use the download button to access the NEO-M8L-06B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NEO-M, or try a keyword search, such as Other Telecom ICs

About u-blox

u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
