NEO-M9N-00B - u-blox

Description: M9 RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS -167dBm Module

Download NEO-M9N-00B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

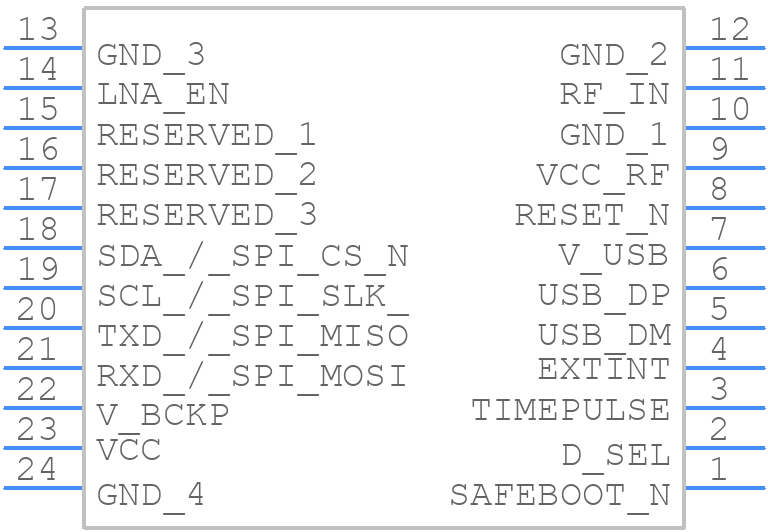

NEO-M9N-00B - u-blox - PCB symbol
click to zoom
PCB Footprints

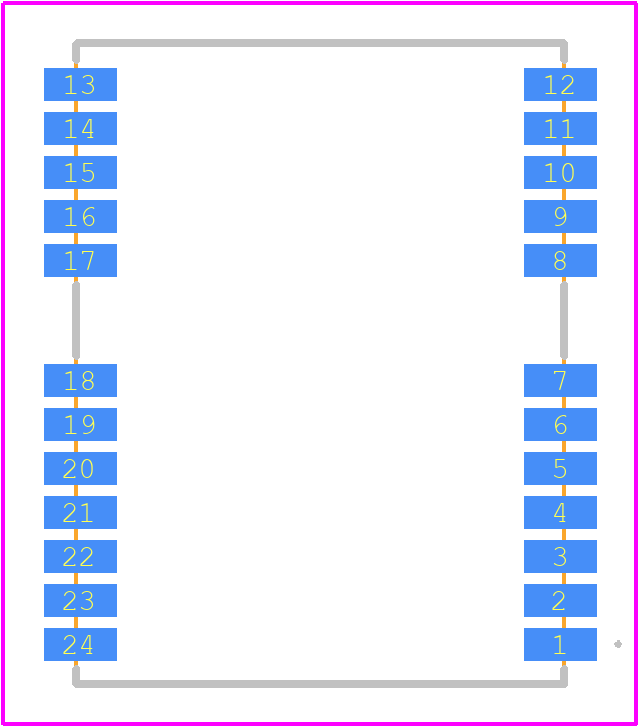

NEO-M9N-00B - u-blox PCB footprint - Other - Other - NEO-M9N-00B-5
click to zoom
3D Models
NEO-M9N-00B - u-blox - 3D model - Other - NEO-M9N-00B-5
click to zoom

NEO-M9N-00B Details

  • Manufacturer Part Number:

    NEO-M9N-00B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-24

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2019-11-15

  • Manufacturer:

    u-blox AG

  • Data Rate:

    12000 Mbps

  • JESD-30 Code:

    R-XDMA-N24

  • Length:

    16 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.6 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    GNSS Module

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    DUAL

  • Width:

    12.2 mm

NEO-M9N-00B Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply power to the VCC pin, followed by the EN pin, and then the RST pin. This ensures that the module is properly initialized and configured.
  • To use an external antenna, connect the antenna to the ANT pin and set the ANT_SEL pin to a logic high level. Additionally, ensure that the antenna is properly matched to the module's 50 ohm input impedance.
  • The maximum update rate of the NEO-M9N-00B is 25 Hz, which means it can provide location data up to 25 times per second.
  • Yes, the NEO-M9N-00B can be used in a hot-swap configuration, but it requires proper power sequencing and signal isolation to prevent damage to the module or other components.
  • To troubleshoot GPS signal loss or weak signal issues, check the antenna connection and orientation, ensure that the module is properly configured, and verify that there are no sources of electromagnetic interference (EMI) nearby.
