NFAL7565L4B - onsemi

Description: Low-Loss, Short-Circuit Rated IGBTs (FS4); Very Low Thermal Resistance Using Al2O3 DBC Substrate; Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout; Having Separate Open-Emitter Pins from Low-Side IGBTs; Single-Grounded Power Supply; LVIC Temperature-Sensing Built-In; Isolation Rating: 2500 Vrms / 1 min.; 650 V - 75 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection

Download NFAL7565L4B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

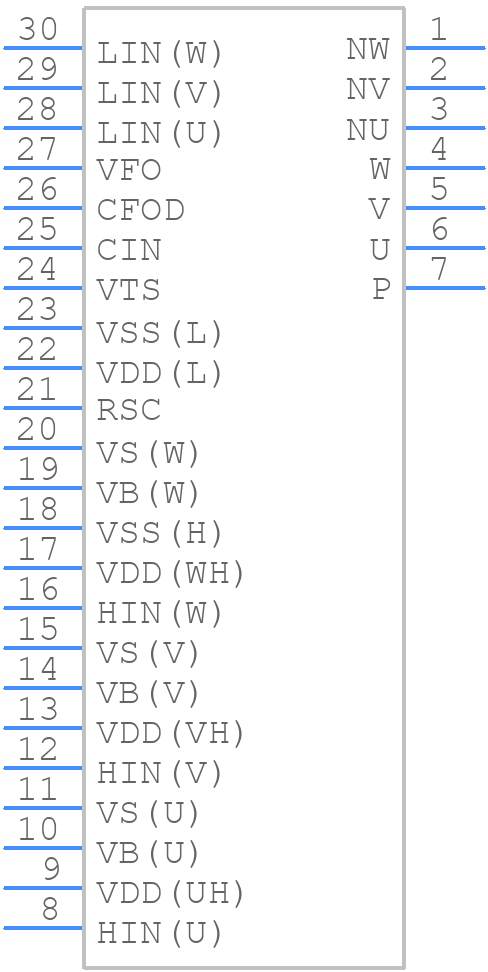

NFAL7565L4B - onsemi - PCB symbol
click to zoom
PCB Footprints

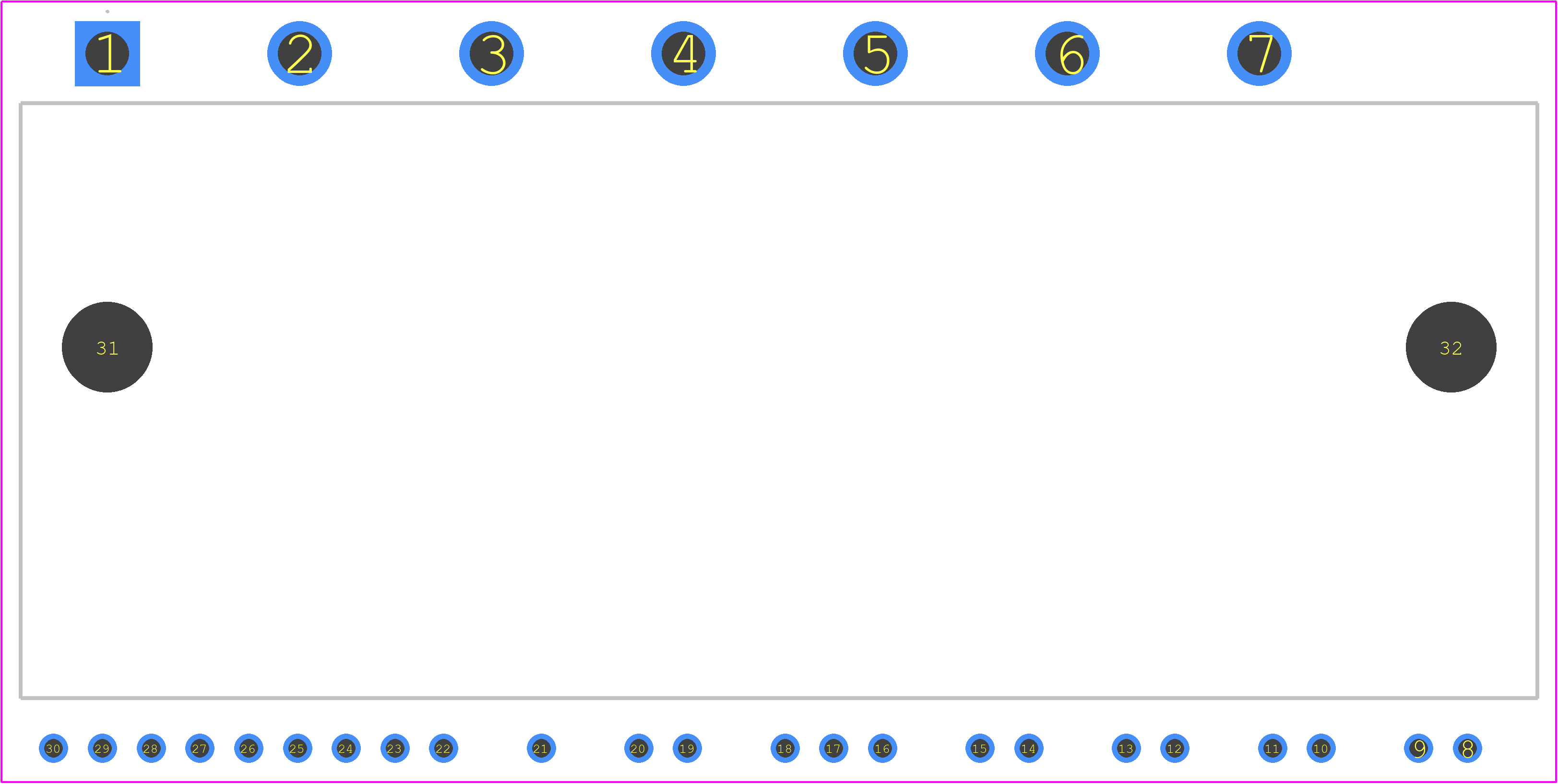

NFAL7565L4B - onsemi PCB footprint - Other - Other - NFAL7565L4B-4
click to zoom
3D Models
NFAL7565L4B - onsemi - 3D model - Other - NFAL7565L4B-4
click to zoom

NFAL7565L4B Details

  • Manufacturer Part Number:

    NFAL7565L4B

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP30, 79x30/SPM49 CAA

  • Package Description:

    DIP-30

  • Manufacturer Package Code:

    MODGR

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    11 Weeks

  • Date Of Intro:

    2019-04-05

  • Manufacturer:

    onsemi

  • YTEOL:

    9.6

  • Additional Feature:

    CONTROL SUPPLY VOLTAGE= 15V

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDMA-T30

  • JESD-609 Code:

    e3

  • Length:

    79 mm

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Output Current-Max:

    150 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,30LEAD,1.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    8.8 mm

  • Supply Voltage-Max (Vsup):

    400 V

  • Supply Voltage-Nom (Vsup):

    300 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    31 mm

NFAL7565L4B Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Monitor the device's junction temperature and adjust the system design accordingly.
  • Use a shielded enclosure, keep sensitive analog circuits away from the NFAL7565L4B, and ensure proper grounding and decoupling. Implement EMI filters and shielding on I/O lines as needed.
  • Use a low-ESR capacitor for decoupling, minimize lead lengths, and ensure a low-inductance path for the output. Implement a pi-filter or a common-mode choke to reduce EMI.
  • Ensure identical device configurations, synchronize the clock signals, and implement a master-slave configuration to prevent oscillations. Use a common power supply and decoupling network.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFAL7565L4B Overview

Use the download button to access the NFAL7565L4B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFAL7, or try a keyword search, such as Motion Control Electronics
