NFAL7565L4BT - onsemi

Description: Low-Loss, Short-Circuit Rated IGBTs (FS4); Very Low Thermal Resistance Using Al2O3 DBC Substrate; Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout; Having Separate Open-Emitter Pins from Low-Side IGBTs; Single-Grounded Power Supply; Thermister Built-In; Isolation Rating: 2500 Vrms / 1 min.; 650 V - 75 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection

Download NFAL7565L4BT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

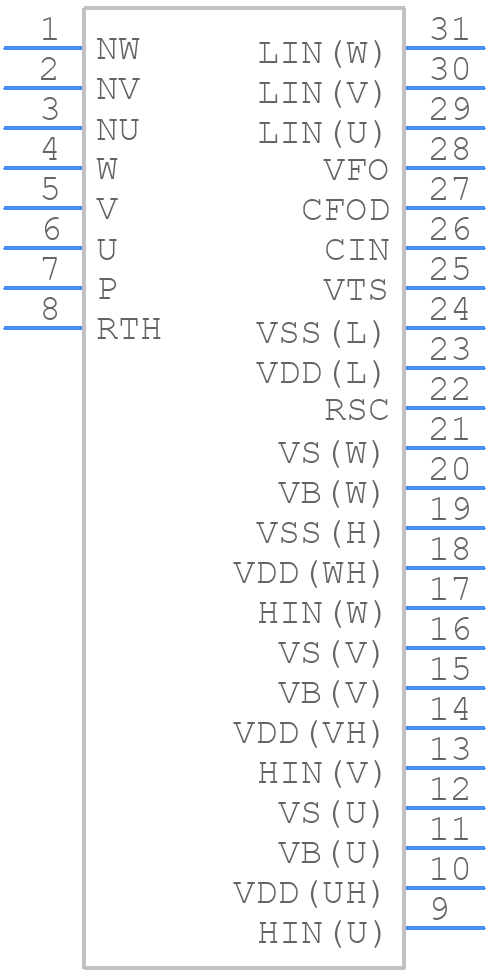

NFAL7565L4BT - onsemi - PCB symbol
click to zoom
PCB Footprints

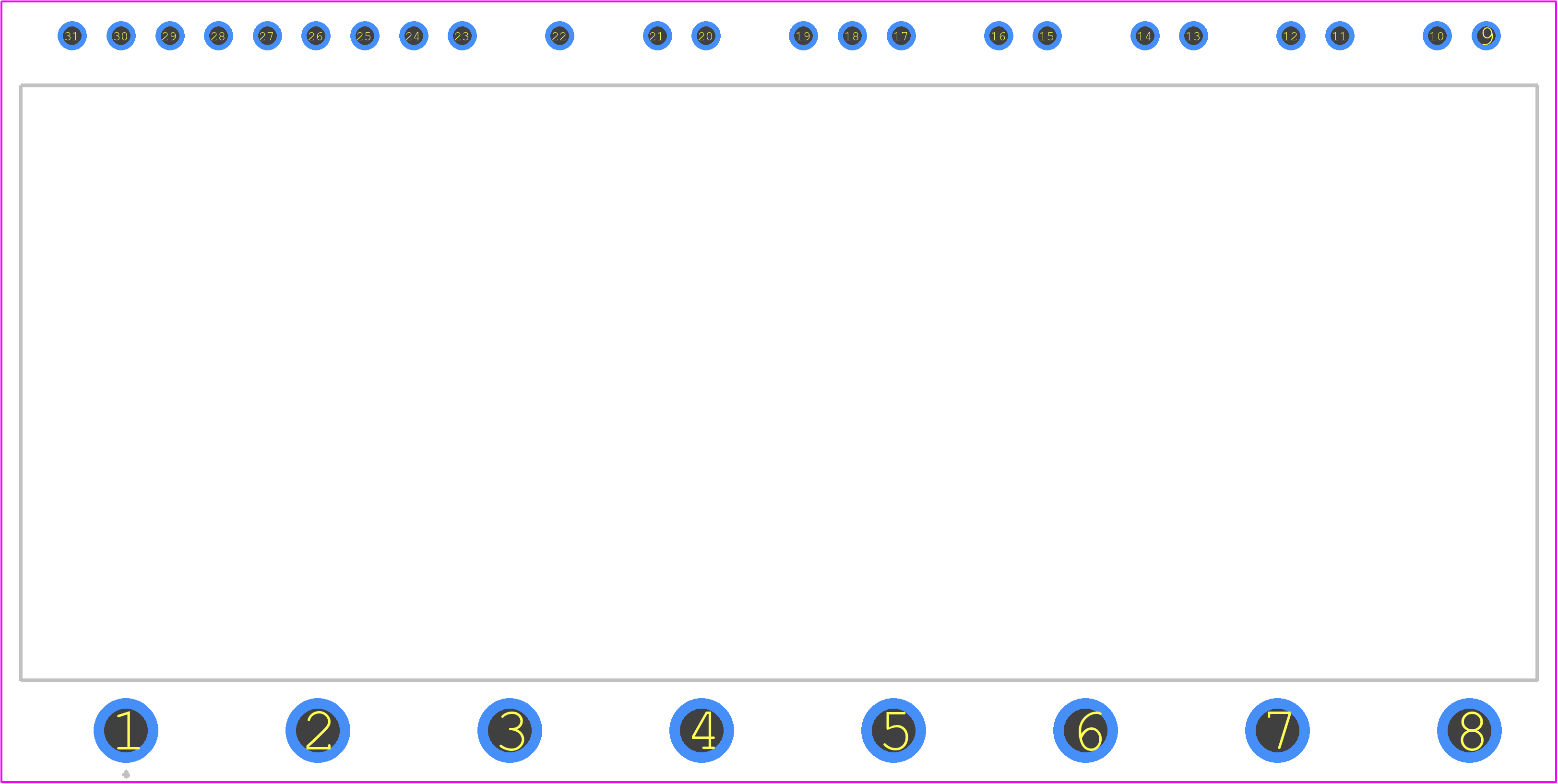

NFAL7565L4BT - onsemi PCB footprint - Other - Other - DIP31, 79x30/SPM49 CAB_2021
click to zoom
3D Models
NFAL7565L4BT - onsemi - 3D model - Other - DIP31, 79x30/SPM49 CAB_2021
click to zoom

NFAL7565L4BT Details

  • Manufacturer Part Number:

    NFAL7565L4BT

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP31, 79x30/SPM49 CAB

  • Package Description:

    DIP-31

  • Manufacturer Package Code:

    MODGQ

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2019-04-05

  • Manufacturer:

    onsemi

  • YTEOL:

    9.6

  • Additional Feature:

    CONTROL SUPPLY VOLTAGE= 15V

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDMA-T31

  • Length:

    79 mm

  • Number of Functions:

    1

  • Number of Terminals:

    31

  • Output Current-Max:

    150 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    8.8 mm

  • Supply Voltage-Max (Vsup):

    400 V

  • Supply Voltage-Nom (Vsup):

    300 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    31 mm

NFAL7565L4BT Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure good airflow and avoid thermal hotspots.
  • Monitor the device's temperature, current, and voltage. Implement over-temperature protection (OTP), over-current protection (OCP), and under-voltage protection (UVP) to prevent damage.
  • Consult the application note and reference design for guidance on optimizing the device's performance. Consider factors such as input voltage, output current, and switching frequency.
  • Use high-quality, low-ESR capacitors and a suitable inductor with a high saturation current rating. Ensure the components are rated for the operating voltage and current.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFAL7565L4BT Overview

Use the download button to access the NFAL7565L4BT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFAL7, or try a keyword search, such as Motion Control Electronics
